Key Features

Hydraulically-actuated Scissor Lift A supports up to 302.55 kg (667 lbs)
Combine multiple lifts for T or Triple configuration
Integrates seamlessly with TAIT Mag Deck system and other staging structures
Maximum rise 6.0 m (19.88 ft)
Maximum speed 0.33 m/s (1.07 ft/s)
Integrates with TAIT Navigator and iQ systems

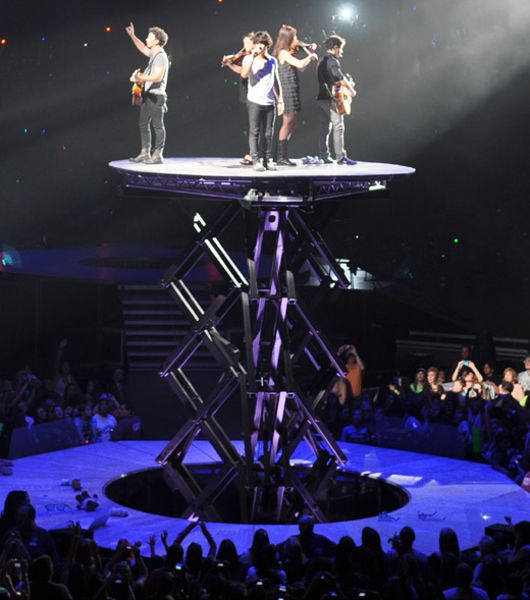

shown in Triple Lift configuration

Description

The TAIT Triple Scissor Lift is a hydraulically-actuated system that lifts performers and props to a height of 6.0 m (19.88 ft) with deck attached. The lift supports multiple decking options, including a 3.96-m (13.0-ft) circular deck that can support multiple performers.

The scissor lift is fully-compatible with the TAIT Mag Deck system, so it integrates seamlessly into all stage design. The lift also is compatible with the TAIT Navigator Automation System, ensuring precise and versatile operation in any production.

Specifications

Connections
Control	Local, Pickle, TAIT Navigator Control Options: Smart Valve Cart or Hydraulic Valve with string encoder
Mechanical
Speed	0.33 m/s (1.07 f/s)
Load Capacity per lift	302.5 kg (667 lbs)
Maximum Rise	4.34 m (14.25 ft)

Construction
Dimensions (L x W x H) per lift	Retracted Extended	3540 mm x 740 mm x 1010 mm (139.37 in x 29.13 in x 39.76 in) 3540 mm x 3540 mm x 5760 mm (139.37 in x 139.37 in x 226.77 in)
Weight per lift		635 kg (1400 lbs)
Accessories
Lift Decks, Circular	Diameter: 3978 mm (156.69 in) for triple lift configuration
Hydraulics, per Lift Unit	Power Unit (1), Dosing Cylinder (1), Blocking Valve (1)

Dimensions

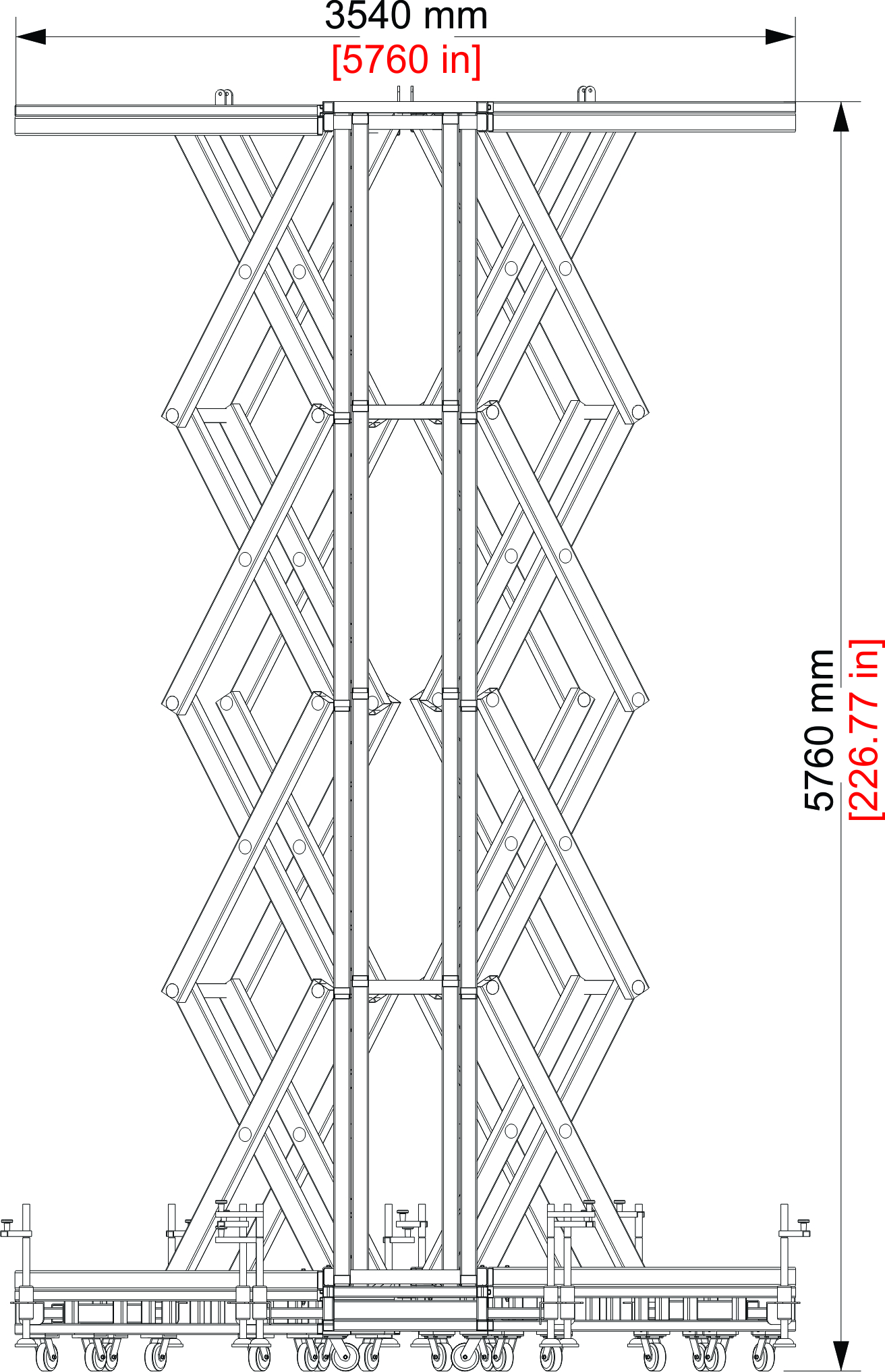

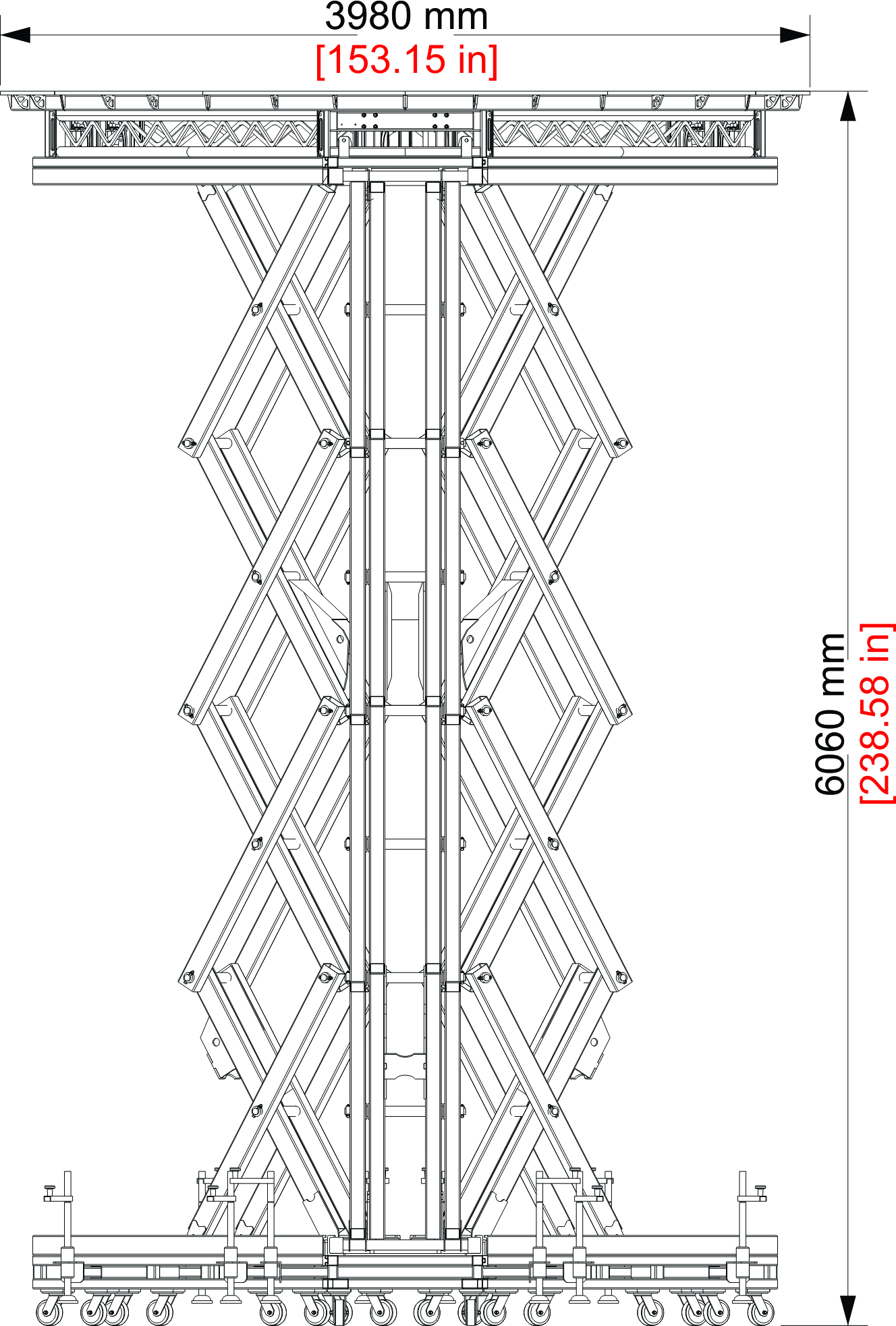

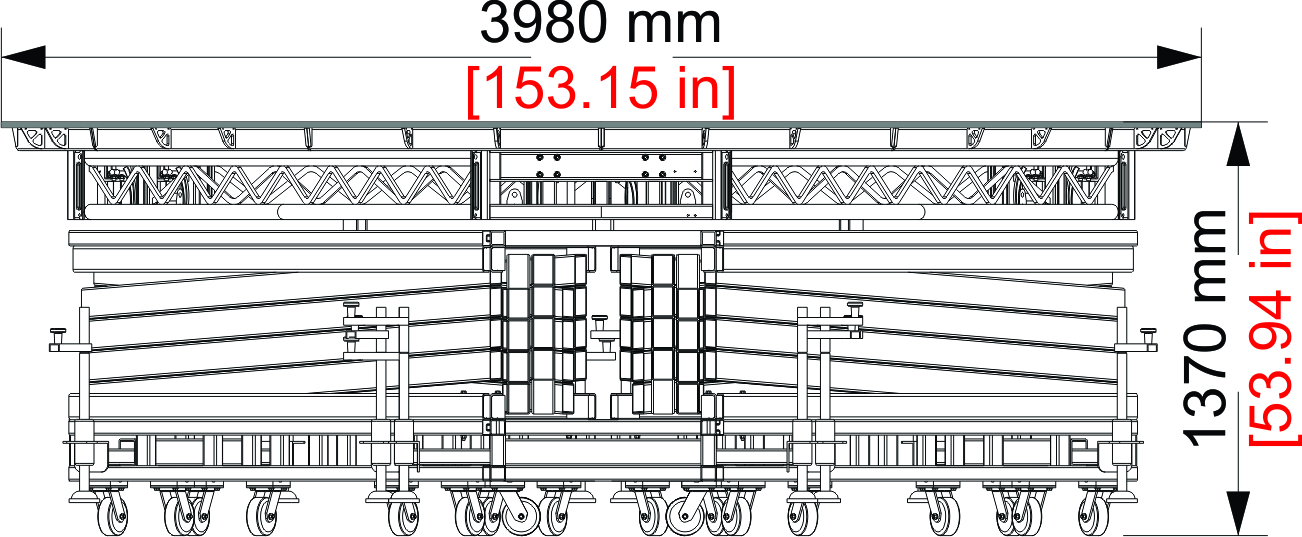

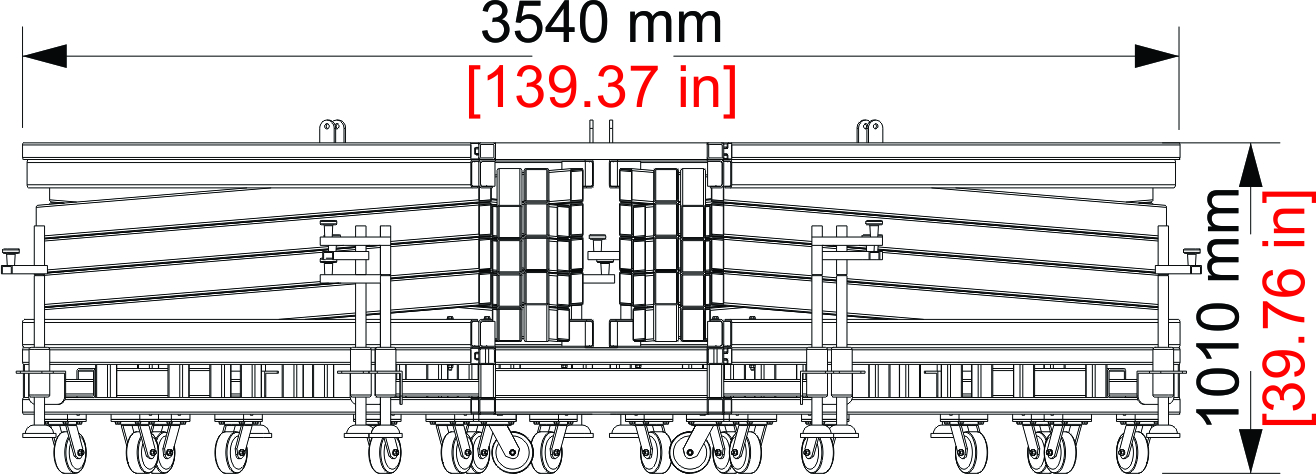

Side View - Lift only	Side View - with Deck attached

Packaging and Shipping

Dimensions (L x W x H)	One (1) Lift	1570 mm x 740 mm x 1020 mm (61.81 in x 29.13 in x 40.16 in)
Weight	One (1) Lift	725.75 kg (1600 lbs)
Dimensions (L x W x H)	Decks Cart	2620 mm x 760 mm x 1600 mm (103.15 in x 29.92 in x 52.99 in)
Weight	Decks Cart	771.11 kg (1700 lbs)

Still Have Questions?

If you have any questions at all--or if you're ready to rent--please contact us. We look forward to hearing from you soon!

Disclaimer: These specifications are general guidelines only and may not be appropriate for your particular project. All product specifications and Data are subject to change without notice. Data, performance features, and images may vary from the final project quote. Issue date: 2025.03.11. Copyright 2025 TAIT Towers Manufacturing, LLC. All rights reserved.

I-CODE: 24800420
