Key Features

Hydraulically-actuated Triple Scissor Lift support up to 680.4 kg (1500 lbs)
Easily accommodates custom decks and several performers
Integrates seamlessly with TAIT Mag Deck system and other staging structures
Maximum rise 4.75 m (15.58 ft)
Maximum speed 0.33 m/s (1.07 ft/s)
Integrates with TAIT Navigator and iQ systems

Description

The TAIT Triple Scissor Lift is a hydraulically-actuated system that lifts performers and props to a height of 6 m (19.69 ft) with deck attached. The lift supports multiple decking options, including a 3.96-m (13.0-ft) circular deck that can support multiple performers.

The scissor lift is fully-compatible with the TAIT Mag Deck system, so it integrates seamlessly into all stage design. The lift also is compatible with the TAIT Navigator Automation System, ensuring precise and versatile operation in any production.

Specifications

Connections
Control	Local, Pickle, TAIT Navigator Control Options: Smart Valve Cart or Hydraulic Valve with string encoder
Mechanical
Speed Range	0.18 m/s (0.59 fps) to 0.33 m/s (1.07 fps)
Load Capacity	Live Load 226.8 kg (500 lbs), Even Distributed Load 680.4 kg (1500 lbs)
Maximum Travel	4750 mm (187.0 in) stroke from 1010 mm (35.43 in) retracted to 5760 mm (2226.77 in) extended height

Construction
Dimensions (L x W x H) without deck	Retracted Extended	3540 mm x 3540 mm x 1010 mm (139.37 in x 139.37 in x 39.76 in) 3540 mm x 3540 mm x 5760 mm (139.37 in x 139.37 in x 226.77 in)
Weight		2600 kg (5732 lbs) includes Triple Lift and Circular Decking
Accessories
Lift Decks, Circular	Diameter: 3978 mm (156.69 in)
Hydraulics, per Lift Unit	Power Unit (1), Dosing Cylinder (1), Blocking Valve (1)

Dimensions

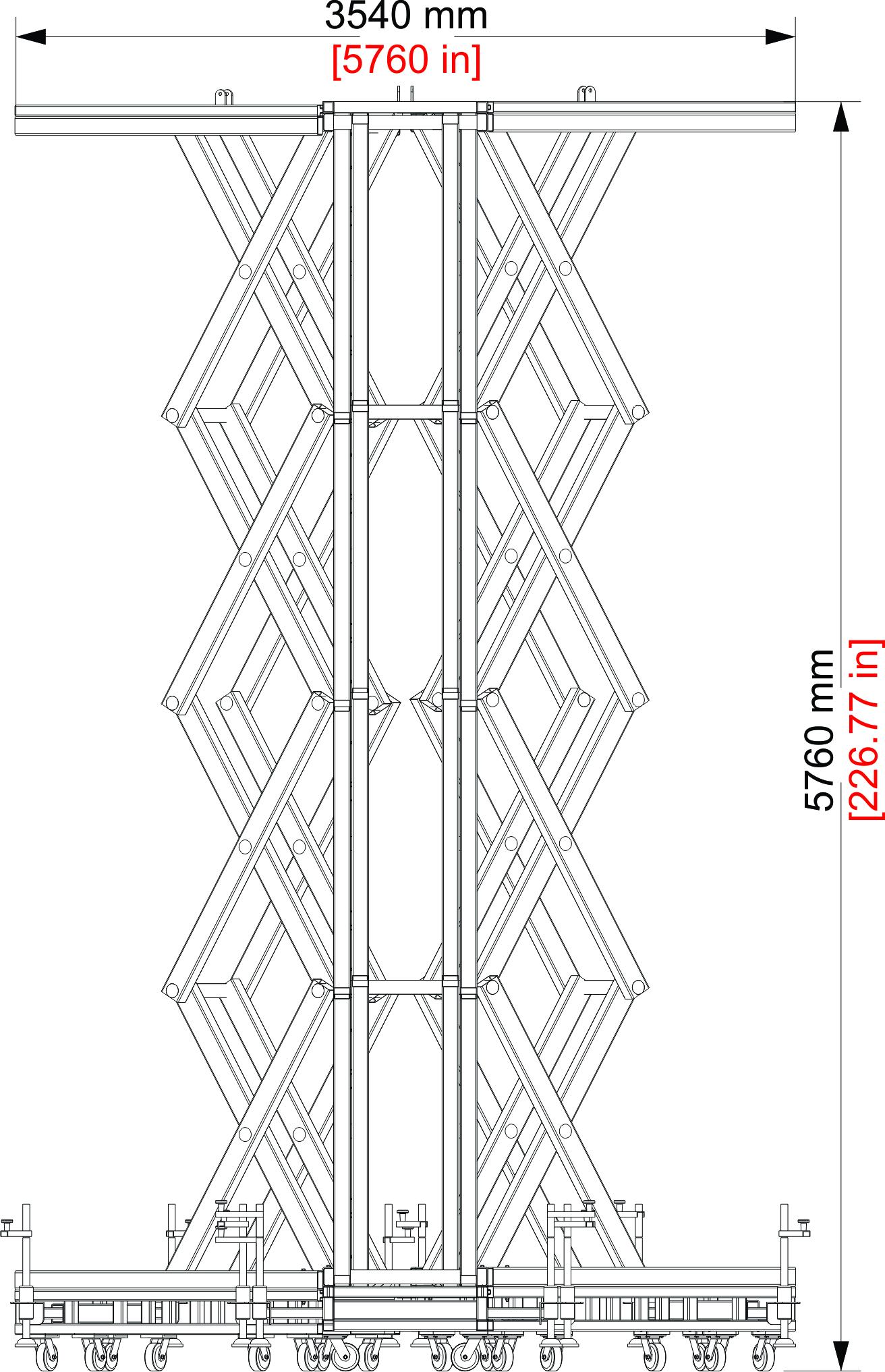

Side View - Lift only	Side View - with Deck attached

Packaging and Shipping

Dimensions (L x W x H)	One (1) Lift	1570 mm x 740 mm x 1020 mm (61.81 in x 29.13 in x 40.16 in)
Weight	One (1) Lift	725.75 kg (1600 lbs)
Dimensions (L x W x H)	Decks Cart	2620 mm x 760 mm x 1600 mm (103.15 in x 29.92 in x 52.99 in)
Weight	Decks Cart	771.11 kg (1700 lbs)
