Key Features

TAIT Zip Lift elevates props/lights up to 7.62 m (25.0 ft) above stage
Or elevate a performer up to 3.05 m (10.0 ft)
Maximum capacity 181.4 kg (400.0 lbs)
Maximum speed 0.30 m/s (0.99 fps)
Optional cable system provides power and DMS though center of lift
Integrates with TAIT Navigator and iQ systems

Description

The TAIT Zip Lift is a custom-built element used to elevate props or a performer above the stage. The lift rises at a maximum speed of 0.30 m/s (0.99 ft/s) to a height of 7.62 m (25.0 ft) with props or 3.05 m (10.0 ft) with a performer onboard. The lift supports various mounting brackets that connect to lighting or staging elements, or supports a platform for performers. An optional cable management system, located below the lift can provide power and DMX through the center of the Zip Lift.

The Zip Lift is fully-compatible with the TAIT Navigator Automation System, providing control of intricate and precise movements, while maintaining complete control over the load. The Zip Lift integrates seamlessly with the TAIT Decking system; adding versatility and flexibility to any stage production. Packaged into self-contained dolly for quick setup/teardown.

Specifications

Connections
Control	Local, TAIT Navigator
Power	L22-20
Mechanical
Maximum Speed	0.30 m/s (0.99 fps)
Maximum Lift	181.4 kg (400.0 lbs)
Maximum Rise	Equipment configuration: 7.62 m (25.0 ft) Performer configuration: 3.05 m (10.0 ft)

Construction
Dimensions (L x W x H)	Performer: 1143 mm x 1143 mm x 1371.6 mm (45 in x 45 in x 54 in) Lights: 1143 mm x 1143 mm x 1670 mm (45 in x 45 in x 65.75 in)
Accessories
Cable Management System	Integrated DMX and power cabling for lighting or props on lift

Dimensions

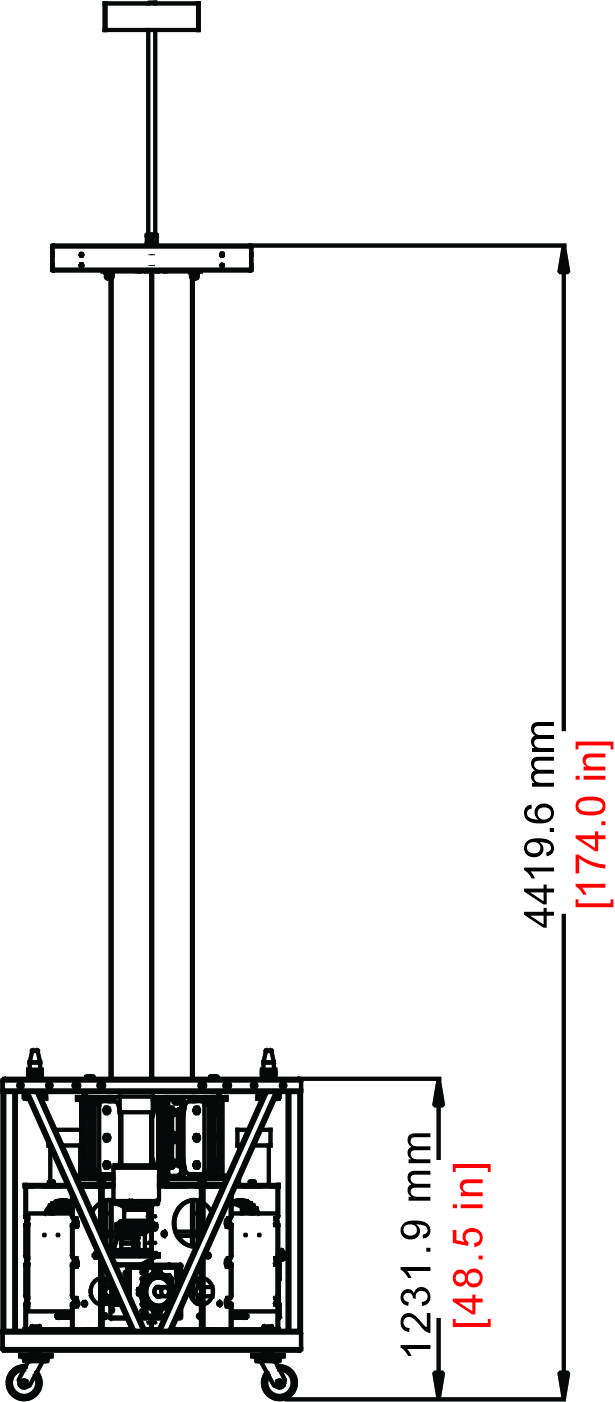

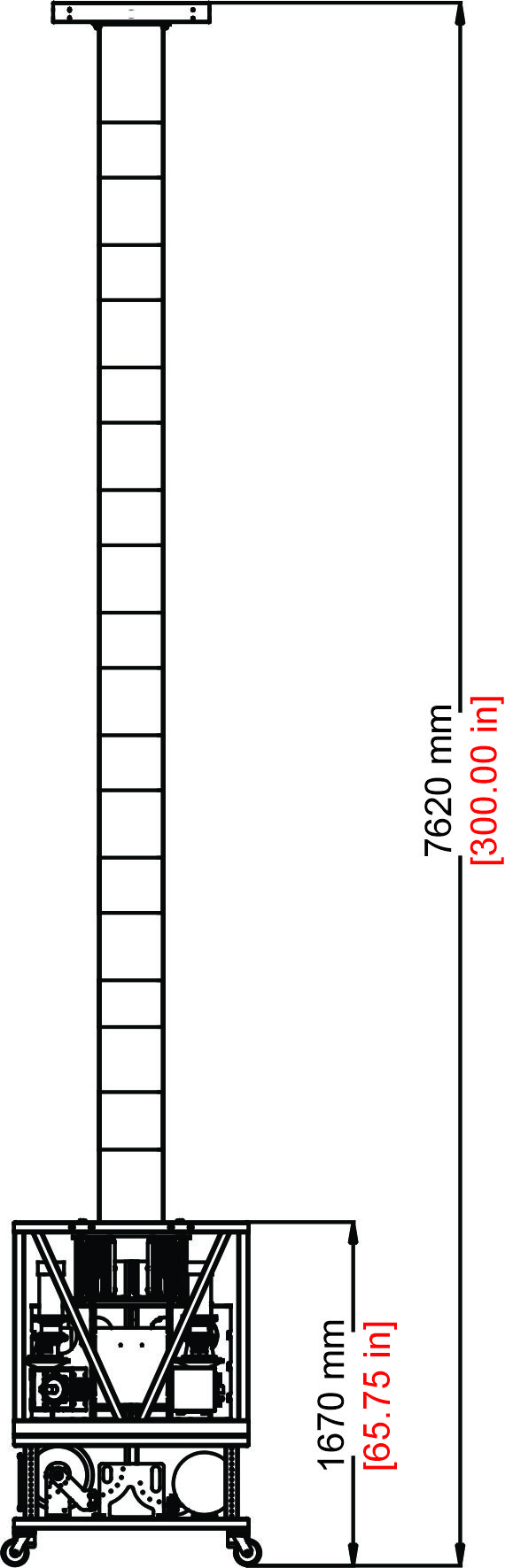

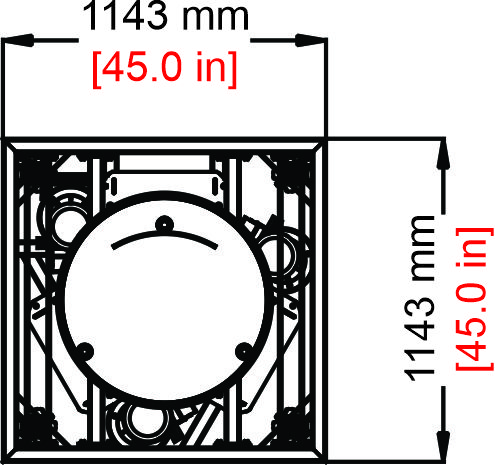

Top View	Front View -Performer	Front View - Props/Lighting

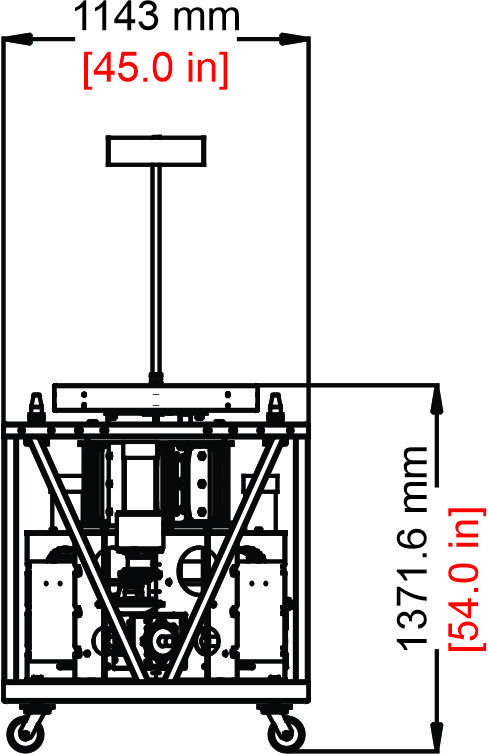

Front View - Retracted

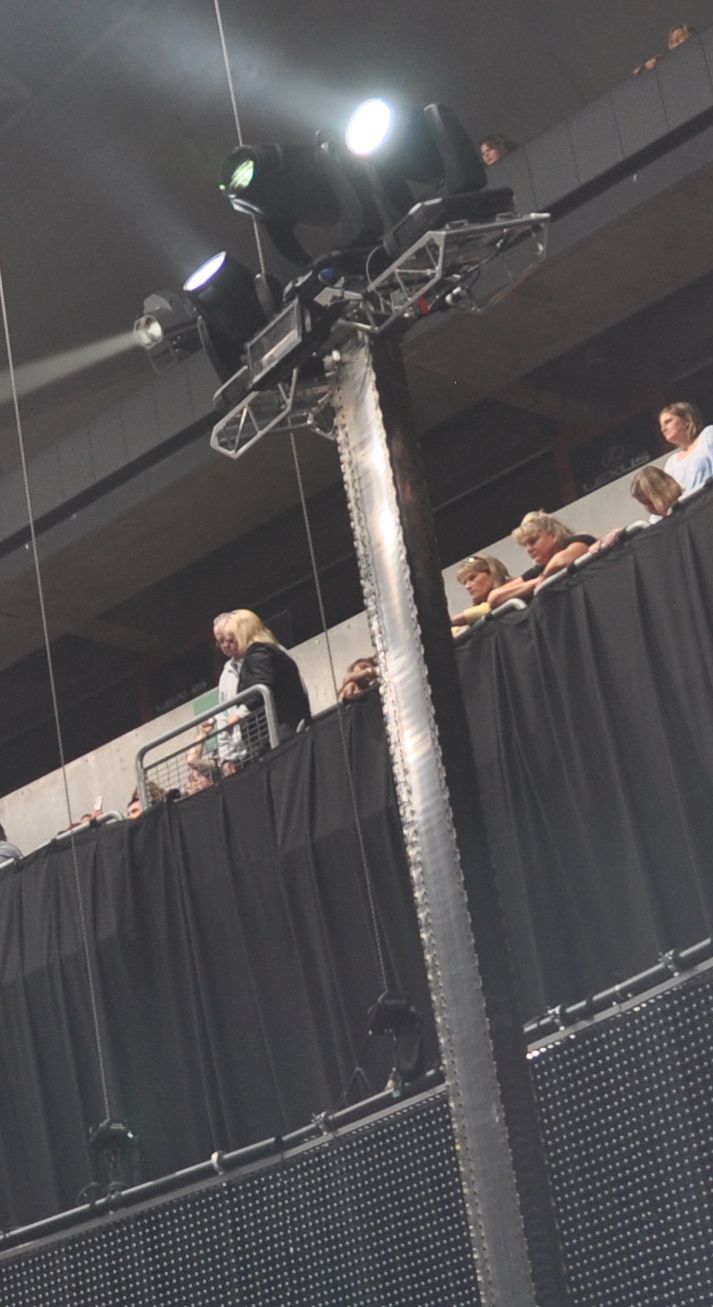

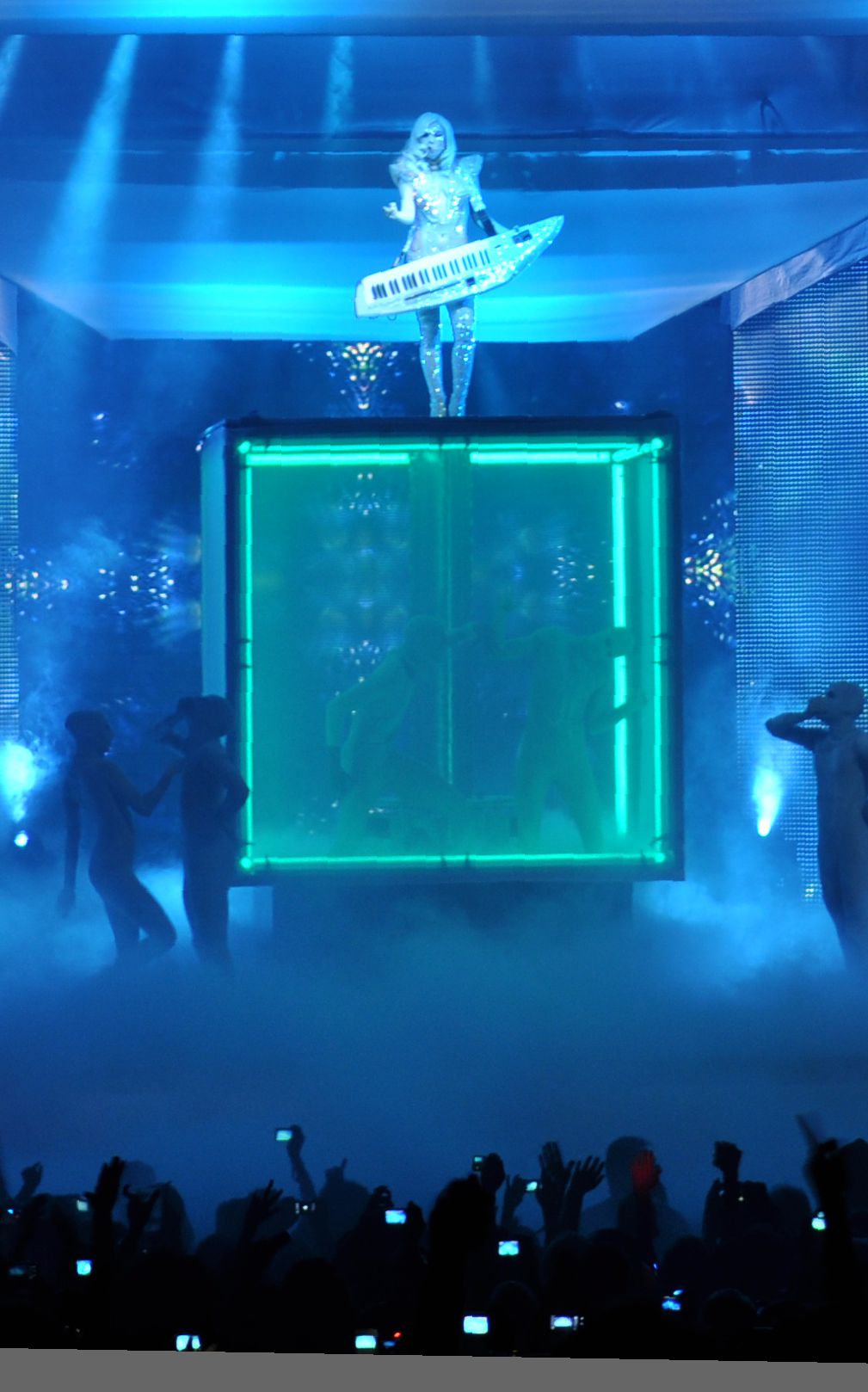

Performer Configuration	Lighting Configuration

Packaging and Shipping

Dimensions (L x W x H)	1143 mm x 1143 mm x 1930.4 mm (45.0 in x 45.0 in x 76.0 in)
Weight	453.59 kg (1000 lbs)

Still Have Questions?

If you have any questions at all--or if you're ready to rent--please contact us. We look forward to hearing from you soon!

Disclaimer: These specifications are general guidelines only and may not be appropriate for your particular project. All product specifications and Data are subject to change without notice. Data, performance features, and images may vary from the final project quote. Issue date: 2021.12.07. Copyright 2021 TAIT Towers Manufacturing, LLC. All rights reserved.

I-CODE: 24400000, 24400000-C
