Key Features

Custom TAIT Revolve integrates in stage to rotate performers and props
Maximum speed 1 RPM
39ft and 48ft diameters
Compatible with TAIT Mag Deck system
Integrates with TAIT Navigator and iQ systems

Description

The TAIT Revolve is a custom-built, dynamic piece of stage technology that adds versatile motion to large productions. The revolve supports multiple performers, instruments, and props simultaneously. The revolve can be connected to various stage lifts, such as the TAIT Scissor Lifts, to add an extra dimension of motion to concerts, stage shows, and production numbers.

This platform integrates with TAIT Mag Deck system and surrounds to create a seamless and uniform stage appearance. Convert to 39ft diameter platform by swapping decks. The turntable is compatible with the TAIT Navigator Automation System, ensuring versatile operation and precise control.

Specifications

Electrical
Voltage		180V
Power		0.75 HP
Connections
Power		L22-30
Control		Local, Pickle, TAIT Navigator and iQ System
Mechanical
Maximum speed		39ft @ 1.0 RPM; 48ft @ 0.82 RPM

Construction
Dimensions (L x W x H)	39 ft 48 ft	11.88 m x 11.88 m x 1.52 m (39.0 ft x 39.0 ft x 5.0 ft) with surround 14.63 m x 14.63 m x 1.52 m (48.0 ft x 48.0 ft x 5.0 ft) with surround
Accessories
Performer Platform	39ft 48ft	Ø11.79 m (Ø38.69 ft) Ø14.53 m (Ø47.67 ft)

Dimensions

Side View - 39ft	Side View - 48ft

Top View - 39ft without Shelf	Top View - 48ft without Surround

39ft ISO with Shelf	48ft ISO with Surround

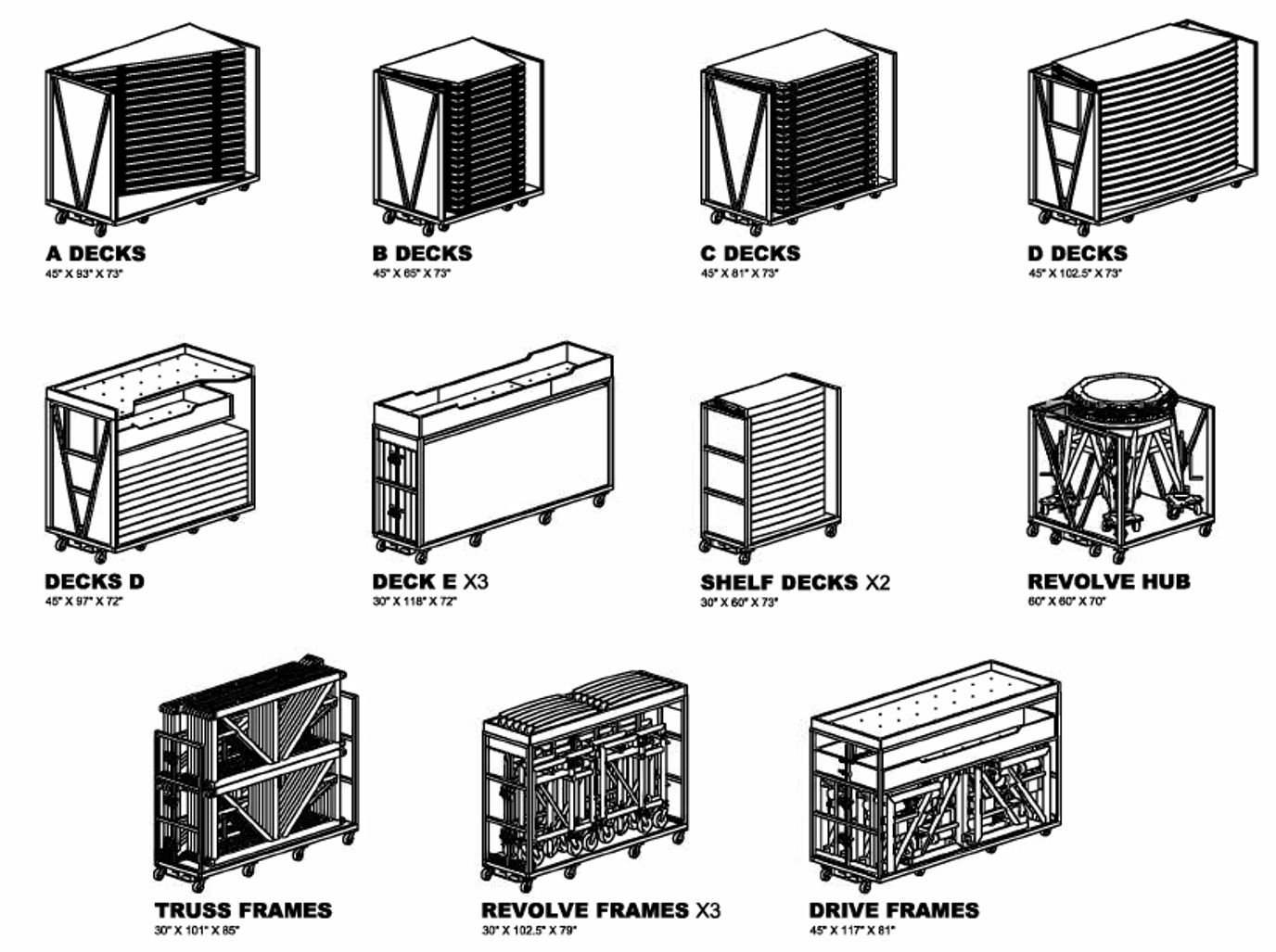

Packaging and Shipping

Still Have Questions?

If you have any questions at all--or if you're ready to rent--please contact us. We look forward to hearing from you soon!

Disclaimer: These specifications are general guidelines only and may not be appropriate for your particular project. All product specifications and Data are subject to change without notice. Data, performance features, and images may vary from the final project quote. Issue date: 2022.11.07 Copyright 2022 TAIT Towers Manufacturing, LLC. All rights reserved.

I-CODE: 17050000K 48ft, 26102500K 39ft
