Key Features
- 8 ft wide Roll Drop with modified TAIT Nano Winch for control and speed
- For variety of retractable soft goods used as projection screens, scenic items, or other elements
- Accepts goods up to 12.2 m (40 ft) long; depends on fabric thickness
- Housed in a 609.6 mm (24 in) GT truss; integrated caster legs attach for transport
- Integrates with TAIT Navigator and iQ systems
|
 |
Description
The TAIT Nano Roll Drop is a truss element with an integrated TAIT Nano Winch attached to a drum. The drum can store various types of soft goods – maximum width of 2.6 m (8.5 ft) – to act as a curtain, screen, or a stage backdrop. The Roll Drop can lower and raise the soft good at a speed up to 0.91 m/s (3 ft/s) between the top and bottom limits. Dual brakes and over-travel limits provide safe and secure lifting at full load and at maximum speed. A separate roll drop controller provides leveling adjustment of soft good spool. Multiple roll drops can be configured to match the shape of any stage. The Nano Roll Drop is fully compatible with TAIT Navigator and can be programmed to perform intricate and precise movements.
Specifications
| Software Compatibility |
| Control System |
TAIT Navigator, iQ |
| Electrical |
Nano Winch |
Roll Drop Controller |
| Motor Phase |
1PH + PE |
1PH + PE |
| Input Voltage |
200-240 VAC |
100-240 VAC |
| Current |
3.0A |
2.0A |
| Connections |
Nano Winch |
Roll Drop Controller |
| Power |
PowerCON |
PowerCON |
| E-Stop |
XLR 4-Pin |
XLR 4-Pin (pass thru only) |
| Control (Nav:COM) |
EtherCON |
EtherCON |
| Mechanical |
|
| Load Speed |
Maximum 0.91 m/s (3 ft/s) |
| Soft Good Travel |
Up to 12.2 m (40 ft); depends upon thickness of soft good
(Roll Drop travels between top and bottom limit only) |
| Construction |
| Dimensions (L x W x H) |
3246.1 mm x 609.6 mm x 1074.4 mm (127.8 in x 24.0 in x 42.3 in) |
| Weight |
59.87 kg (132.0 lbs), without soft good |
| |
|
Dimensions

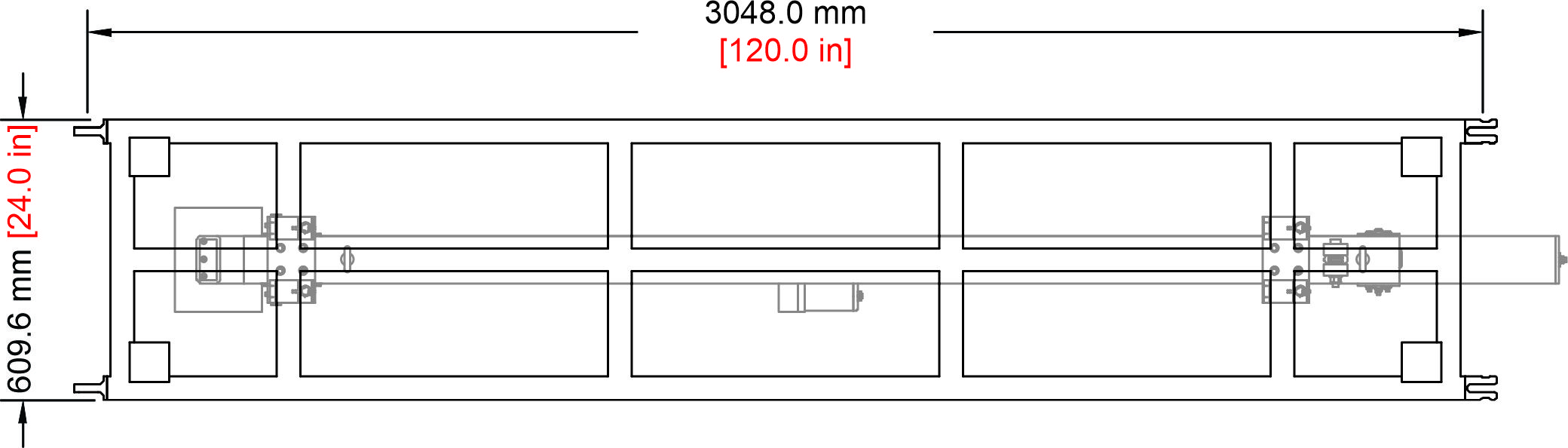

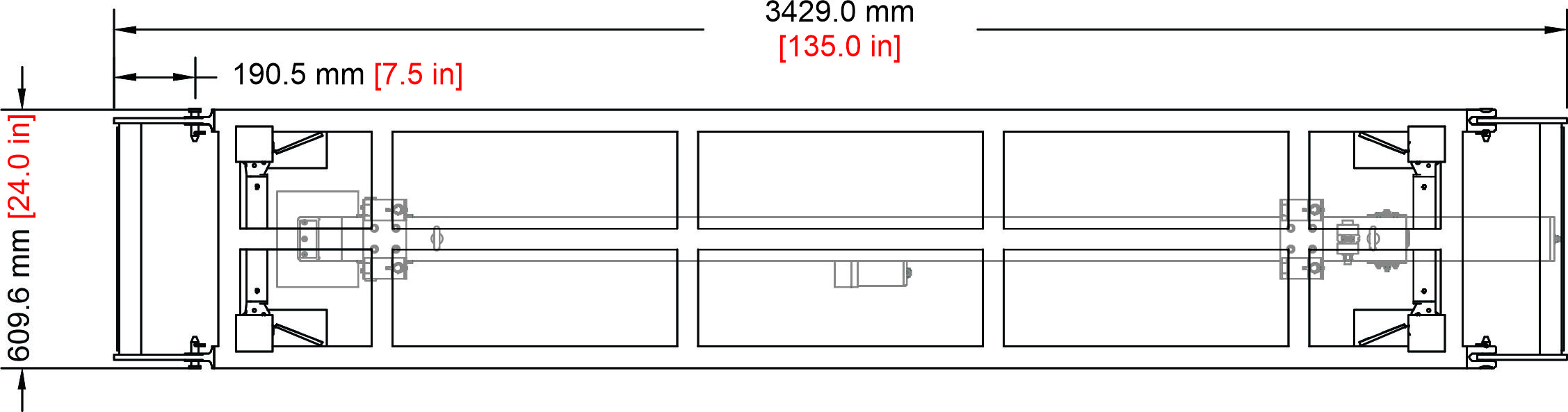

| Top View |
 |

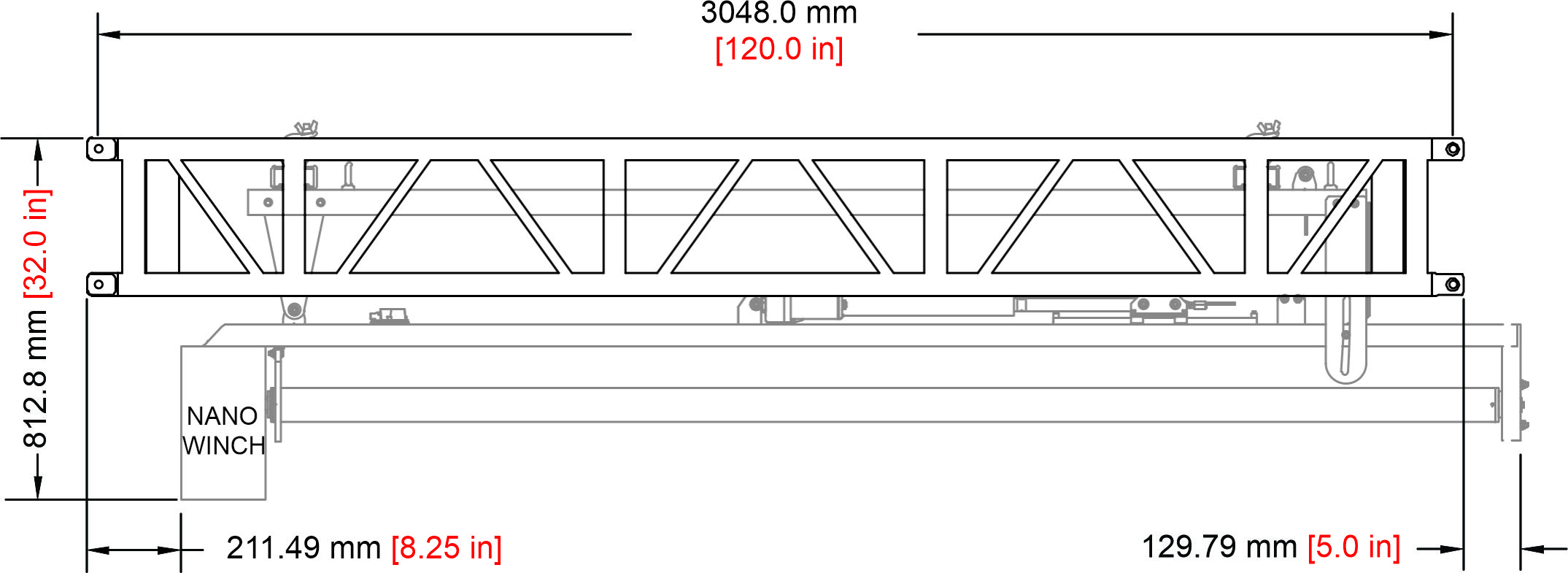

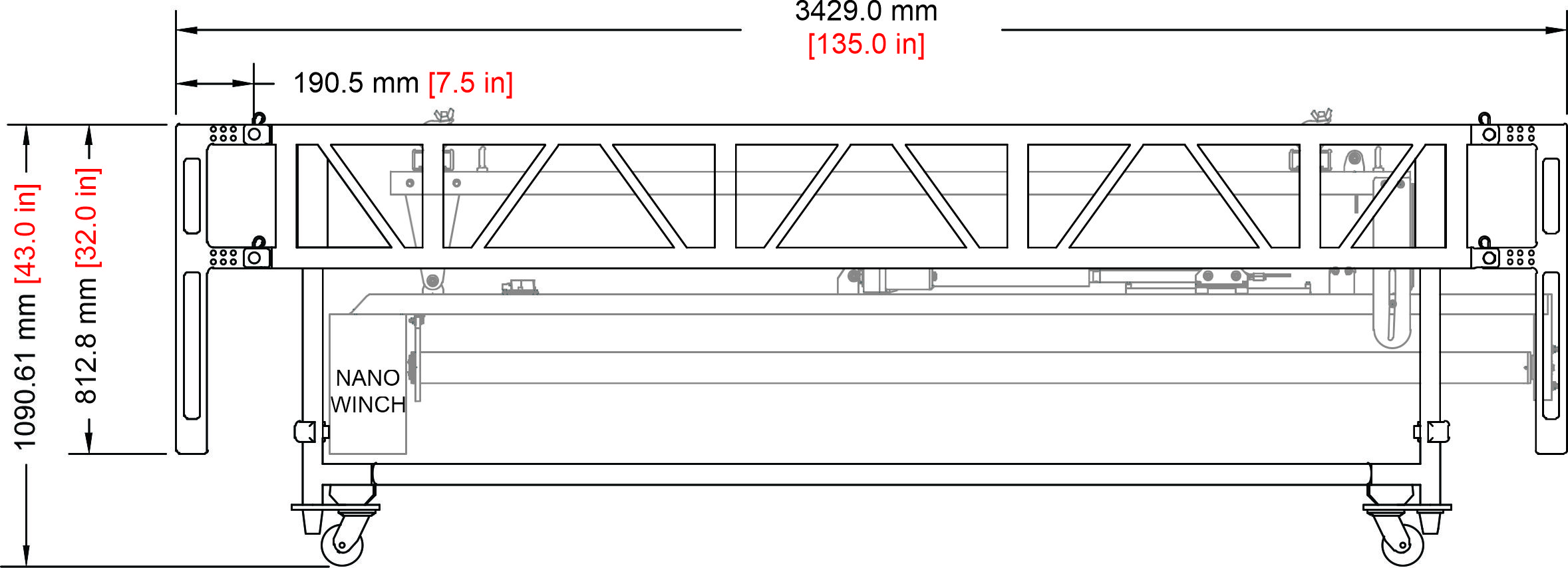

| Side View |
 |

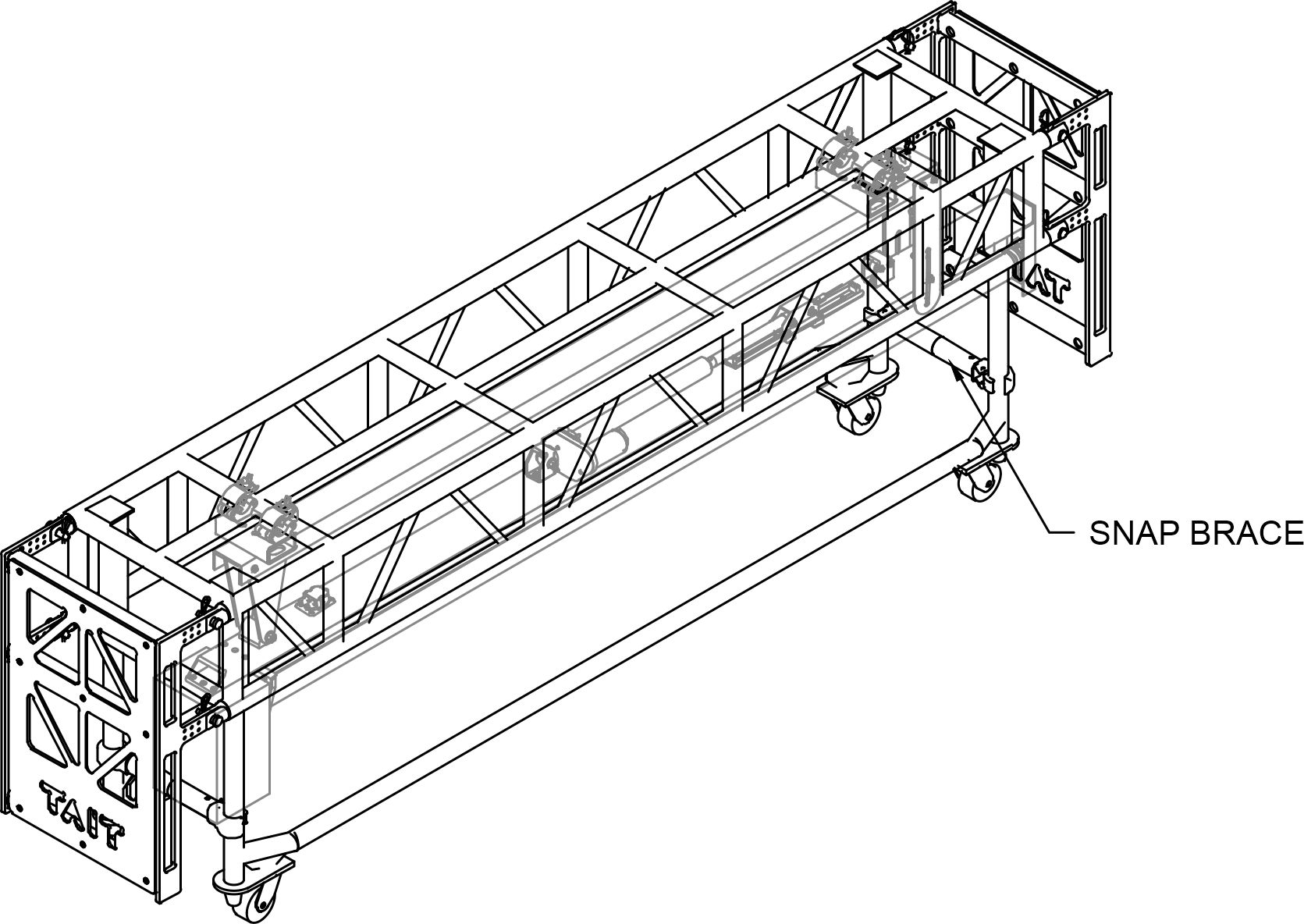

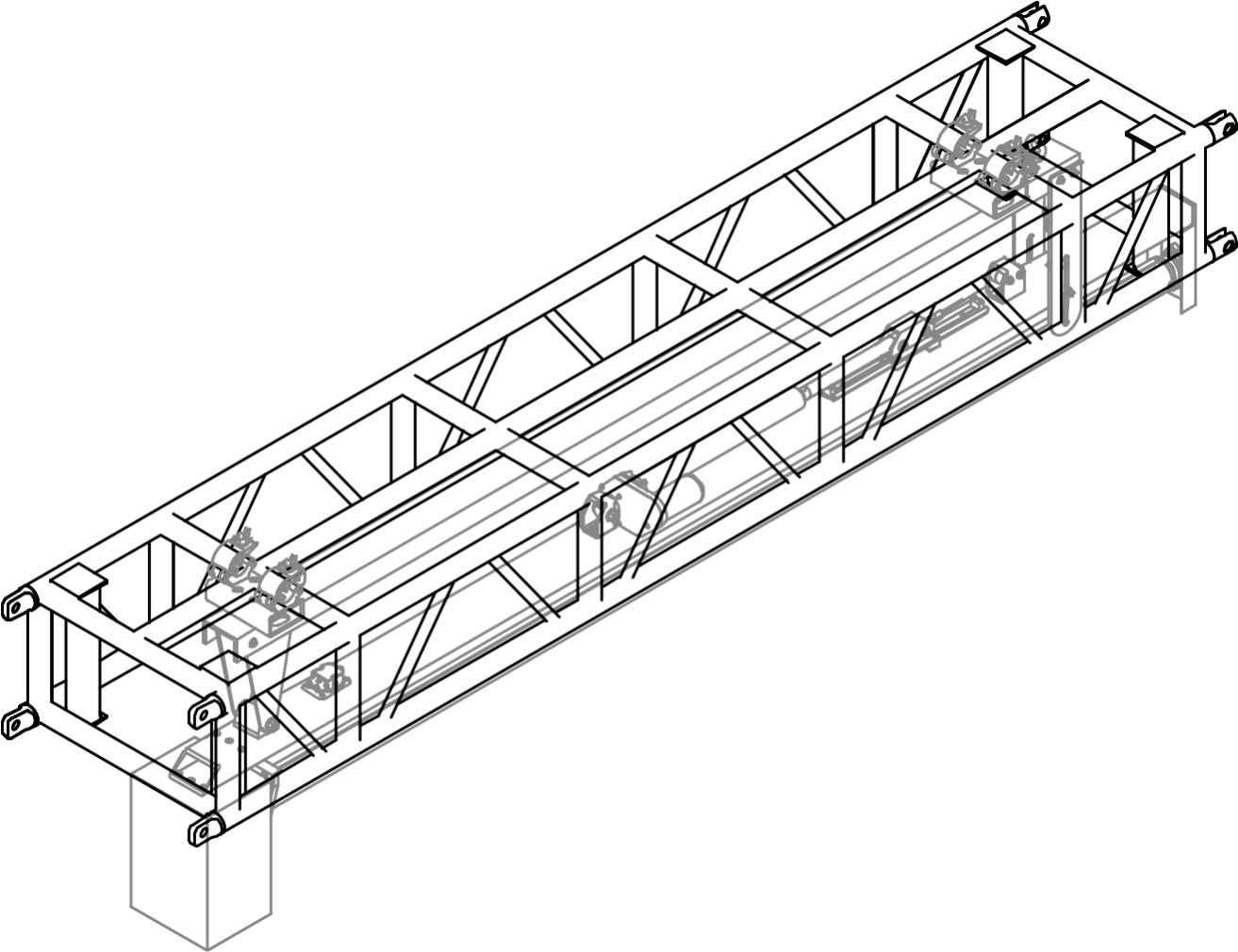

| Travel Configuration |
Show Configuration |
 |
 |
Packaging and Shipping
| Dimensions (L x W x H) |
3246.1 mm x 609.6 mm x 1358.9 mm (127.8 in x 24.0 in x 53.5 in) |
| Weight |
59.87 kg (132.0 lbs), without soft good |
