Key Features
- Custom TAIT lift to reveal a single person or small prop
- Performer platform 762 x 914.4 mm (30 x 36 in)
- Fully compatible with the TAIT Mag Deck system; seamless integration into any production
- Surround deck interfaces with any staging via coffin locks
- Integrates with TAIT Navigator and iQ systems
|
  |
Description

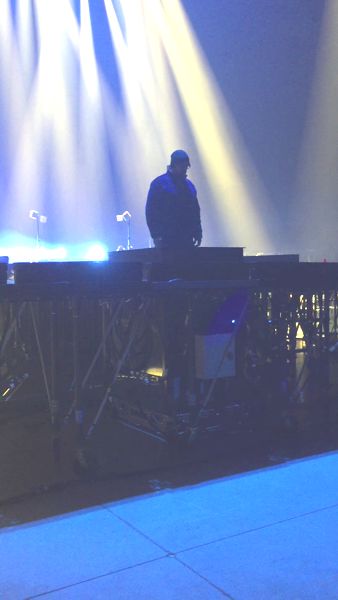

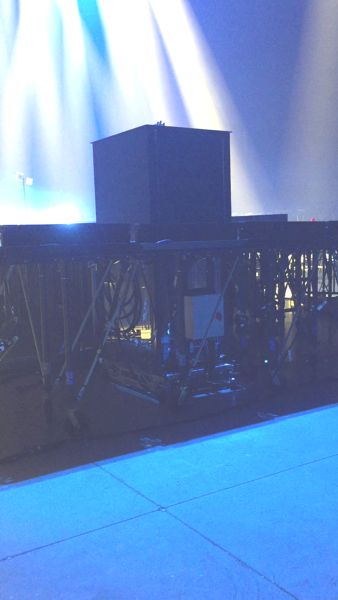

A very compact lift that raises a poly screen, before raising the performer - while lowering the screen. This effectively allows a tall performer to stand in a 60" tall lift, without being seen by the audience. Screen panels are light weight polycarbonate. Surround deck incorporates safe edge rail. This is a self-contained lift unit and not available in any other height.
Specifications
| Electrical |
| Power |
208V, 3 Phase, 20A |
| Connections |
| Control |
EtherCON |
| Power |
L21-30 |
| Mechanical |
| Maximum Speed |
0.3 m/s (1.0 fps) |
| Maximum Lifting Capacity |
113.4 kg (250 lbs) |
| Maximum Travel |
Platform 1117.6 mm (44 in); Screen 1066.8 mm (42 in) |
| Construction |
| Dimensions (L x W x H) |
1066.8 mm x 711.2 mm x 1524 mm (42 in x 28 in x 60 in) |
| Weight |
369.7 kg (815.0 lbs) |
| |
|
Dimensions
| Screen Extended View - Front |
Side View |
Top View |
 |
 |
 |

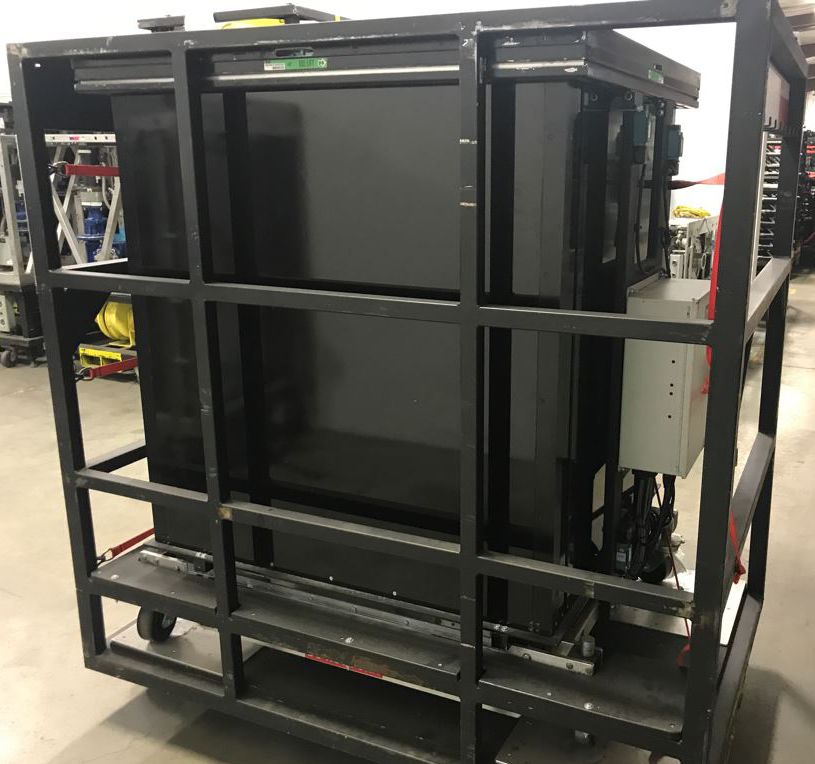

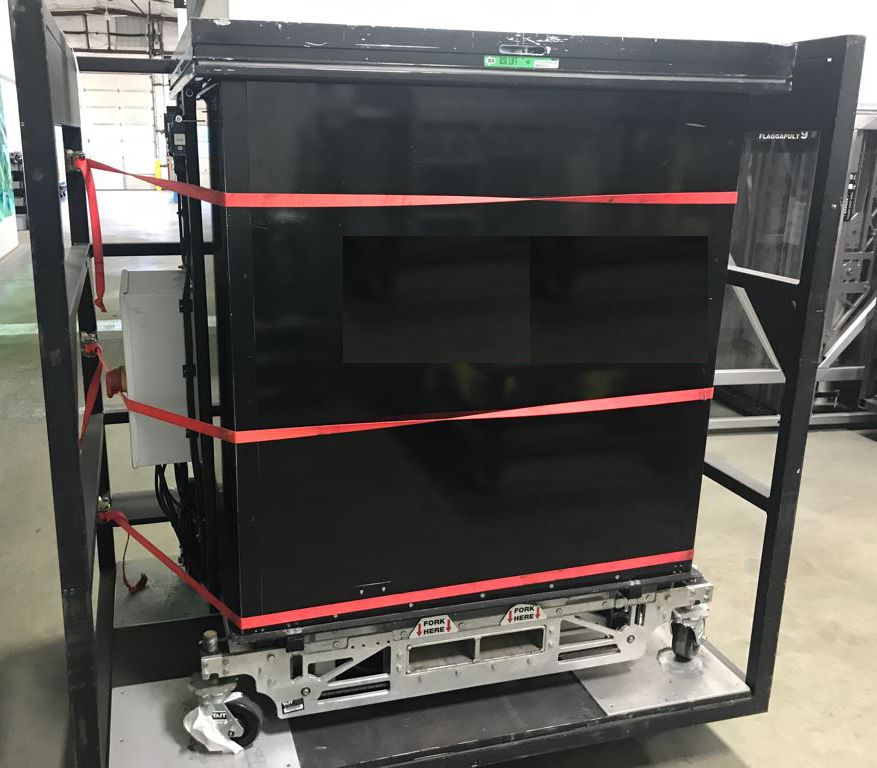

Packaging and Shipping
| Dimensions (L x W x H) |
1676 mm x 1143 mm x 1803 mm (66 in x 45 in x 71 in) |
| Weight |
483.1 kg (1065.0 lbs) |
Still Have Questions?
If you have any questions at all--or if you're ready to rent--please contact us. We look forward to hearing from you soon!
Disclaimer: These specifications are general guidelines only and may not be appropriate for your particular project. All product specifications and Data are subject to change without notice. Data, performance features, and images may vary from the final project quote. Issue date: 2022.02.24. Copyright 2022 TAIT Towers Manufacturing, LLC. All rights reserved.
I-CODE: 25007800
