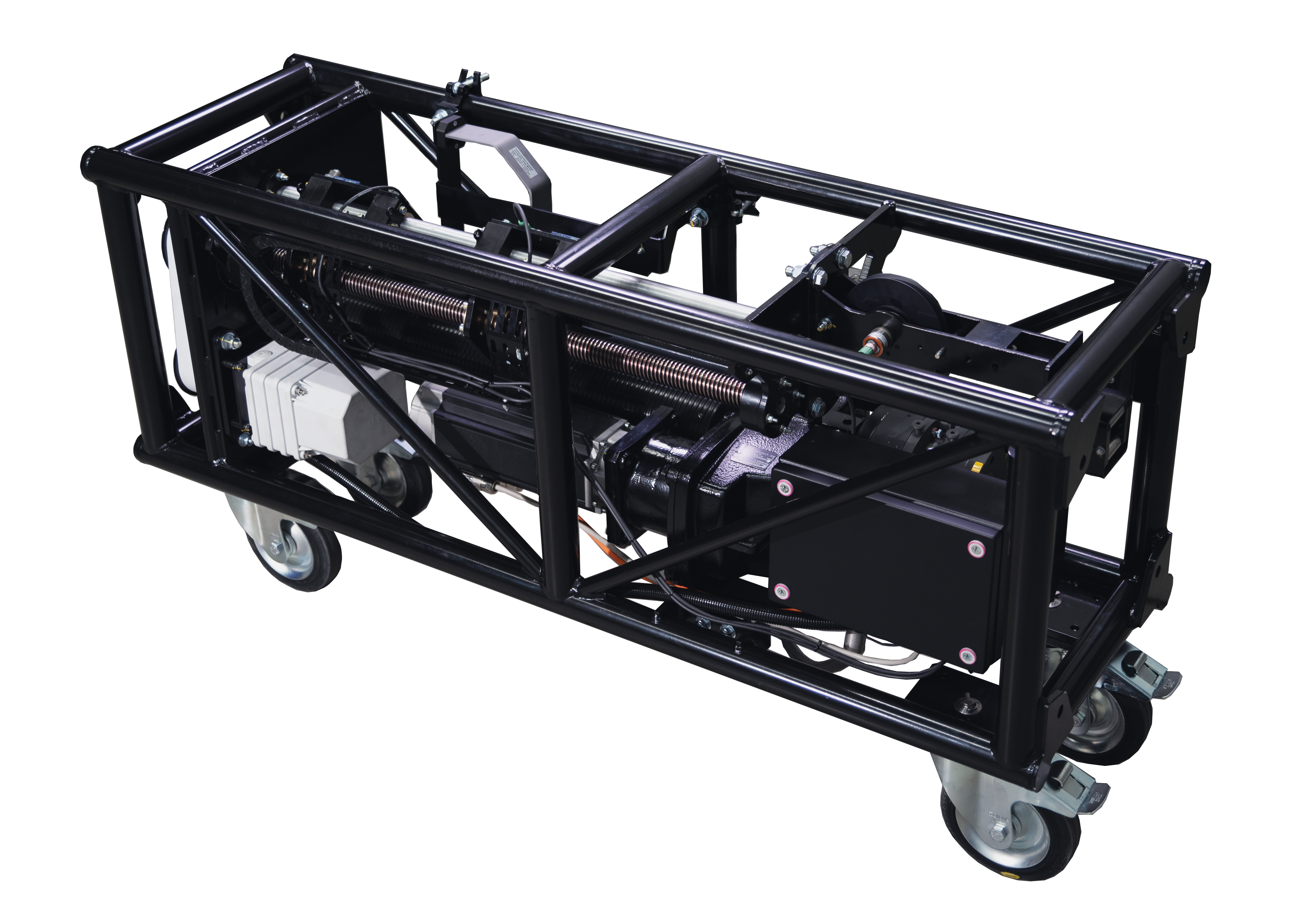

The TAIT Pulse Winch Flexi is a multi-purpose winch designed to be compact and easy to transport, making it ideal for smaller venues and permanent installations. Its simple design reduces the need for dedicated engineers to setup and install the equipment. It is controlled using the apexDRIVE v2 NAV and is compatible with all existing TAIT software.
Each configuration is factory set and uses different wiring and encoder options. The winch can be supplied with a set of hard wheels for touring use or soft wheels for theatre grid use. There is also the option for the rope to exit via the top, bottom, or end faces. The winch is SIL3 rated and complies with EN17206 UC1 to UC6.
Specifications
| Software Compatibility | ||
| Control System | TAIT Navigator and iQ | |
| Compatible drive | Apex Drive v2 | |
| Electrical | ||
| Rated Voltage | 208V / 400V / 480V ± 10% 50-60 Hz | |
| Current output | 208V – 19A nominal, 30A peak 400V – 10A nominal, 15A peak 480V – 8A nominal, 12.5A peak |
|
| Motor type | Servo motor | |
| Connections | ||
| Cables | 1 x Harting and data cable | |
| Construction | ||
| Dimensions (L x W x H) |
1456 mm x 521 mm x 521 mm (57.3 in x 20.5 in x 20.5 in) | |
| Weight | Approx. 200 kg (440 lbs), dependent on chosen accessories | |
| Mounting | Hard castors (2 fixed, 2 swivel) for touring Soft castors (2 fixed, 2 swivel) for theatre grids Optional handle for moving the winch |
|
| Characteristics | ||
| No. of lines | 1 | |
| Line type | 6.35 mm or ¼ in steel or synthetic rope 30 m (100 ft) of travel |
|
| Other features | Dual absolute encoders Two-channel loadcell 4-position limit switches or SIL3 encoder Silent monitored brakes |
|
| Optional features | Gimbal for bottom face rope exit Drop sheave for bottom face rope exit Roller box for front face rope exit Second travelling sheave for 2 drops Mounting brackets for attaching Apex Drive |
|
| Certification | CE, EN17206 UC1 to UC6, SIL 3 | |
Dimensions

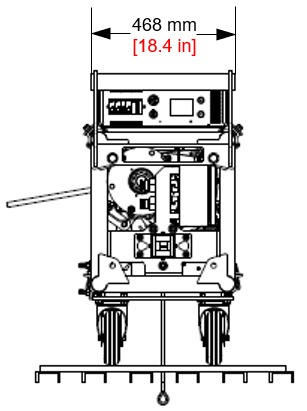

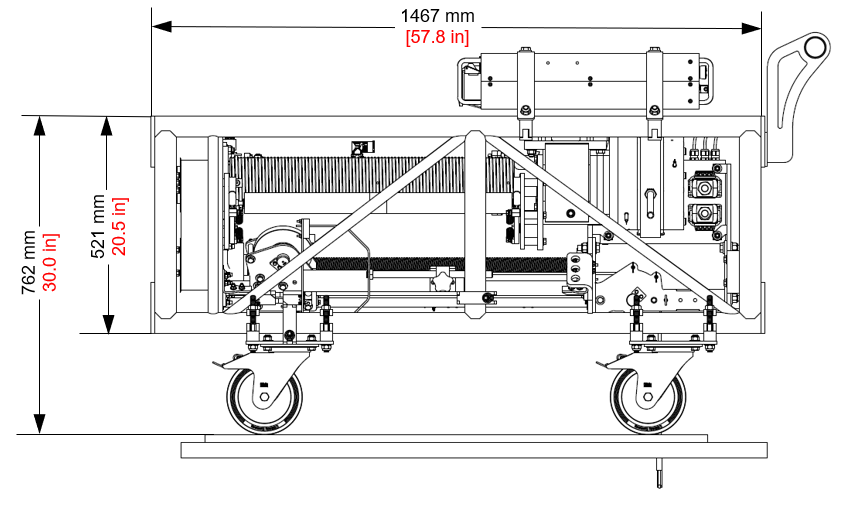

| Front view | Side view | |
