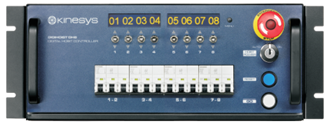

The DigiHoist platform is a range of intelligent electric fixed-speed chain hoist controllers incorporating an advanced digital communications link. Optional features include LibraCELL connectivity for load monitoring as well as encoder and Ethernet connectivity for enhanced positioning control.
The digital communications links allow units to be daisy chained together and incorporates self-healing emergency stop connections, eliminating the need for shorting plugs. Linked units will automatically address the connected channels according to their position in the chain, reducing setup time.
The high-resolution graphic display on the front panel offers comprehensive channel feedback including channel number, status, LibraCELL load reading end encoder information. Safety features include hoist presence indication, limit monitoring, and group halt on fault conditions.
|DigiHoist (32A)||DigiHoist PLUS (63A)|
|Power supply||3-phase + neutral + earth, 50-60 Hz, 175-435V (32A or 63A maximum)|
|Mains connector||IEC 60309 32A ‘Ceeform’ type socket|
|Control connections||Amphenol C16-3 Link In
Amphenol C16-3 Link Out
XLR4 input for load cells
|Hoist connection options||8 x Ceeform
2 x Harting 16 + 32A Ceeform
2 x Socapex 19 + 32A Ceeform
4 x Socapex 19
4 x Harting 16
2 x Harting 32 + 32A Ceeform
8 x Harting 6
8 x Socapex 7
8 x Socapex 14
|Dimensions, excluding cables, handles and mounting hardware
(W x H x D)
|424 mm x 178 mm x 400 mm
(16.7 in x 7.0 in x 15.7 in)
|420 mm x 264 mm x 500 mm
(16.5 in x 10.4 in x 19.7 in)
|Weight (dependent on configuration)||18 - 25 kg (39.7 - 55.1 lbs)||30 - 35 kg (66.1 - 77.1 lbs)|
|Rack mount size||4U||6U|
|Enclosure||1.5 mm steel; matt black powder coat finish|
|Temperature||Operating: 0 to 40ºC (32 to 104ºF)
Storage: -20 to 80ºC (-4 to 175ºF)
|Cooling||Natural air cooling|
|Compliance||SIL3, EN17206 UC1 to UC6|
|Front View||Side View|
DigiHoist PLUS (63A)
|Front View||Side View|
