Key Features
|
Description
The Array PD-ES is a 6U 19” rack module that provides 125A of emergency stop switch power through four 32A three-phase CEE Form outlets. All three-phase outlets are protected with an adjustable RCD. A single-phase auxiliary outlet is provided along with dual XLR7 data outputs for connection to Elevation controllers. The unit includes Transform 485 functionality providing an interface between software and the Elevation controller.

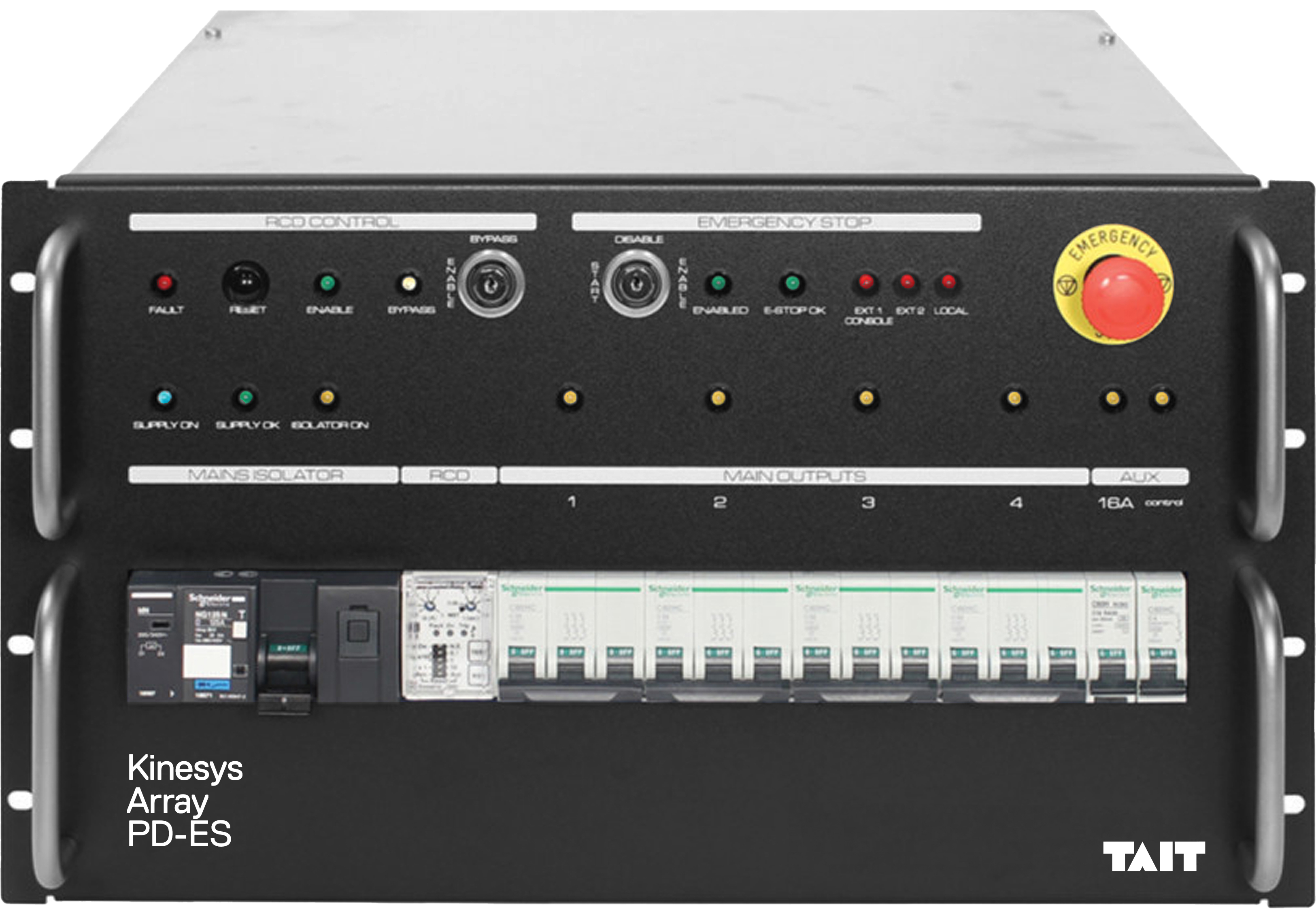

The front panel features an integrated emergency stop button, status indicators, individual MCBs for each CEE Form outlet and an adjustable RCD. ‘Power Present’ status indicators are provided on the front and back panels.
Specifications
| Electrical | ||
| Mains in | 3-Phase + Neutral + Earth, 50-60 Hz, via Powerlock or CamLok E1016 single-pole connectors with through outlets | |
| Power output | 4 x 32 A CEE Form type IEC 60309 5-pole individually switched connectors with a maximum output of 125 A collectively | |
| Auxiliary power options | 16A CEE Form Blue 16A CEE Form Yellow CEE 7/4 Schuko CEE 7/5 French AS 3112 Australian 15A BS 1363 UK 13A NEMA 5-15R Edison |
|
| Data connections | 1 x EtherCON Ethernet 2 x RS485 1 x Male 22 Pin Socapex E-Stop 1 x Female 22 Pin Socapex E-Stop |
|
| Construction | ||
| Dimensions, excluding buttons and handles (L x H x W) | 500 mm x 225 mm x 445 mm (19.7 in x 8.9 in x 17.5 in) | |
| Total weight | 35.2 kg (77.6 lbs) | |
| Characteristics | ||
| Temperature | Operating: 5 to 40ºC (41 to 104ºF) Storage: -20 to 80 ºC (-4 to 175 ºF) |
|
| Ingress Protection | IP40 | |
| Compliance | EN62061, EN ISO 13849 | |
Dimensions
| Front View | Side View |
Still Have Questions?
If you have any questions, please contact us. We look forward to hearing from you soon!
Disclaimer: These specifications are general guidelines only and may not be appropriate for your particular project. All product specifications and Data are subject to change without notice. Data, performance features, and images may vary from the final project quote. Issue date: 2021.05.24. Copyright 2021 TAIT Towers Manufacturing, LLC. All rights reserved.
