Key Features
|
Description

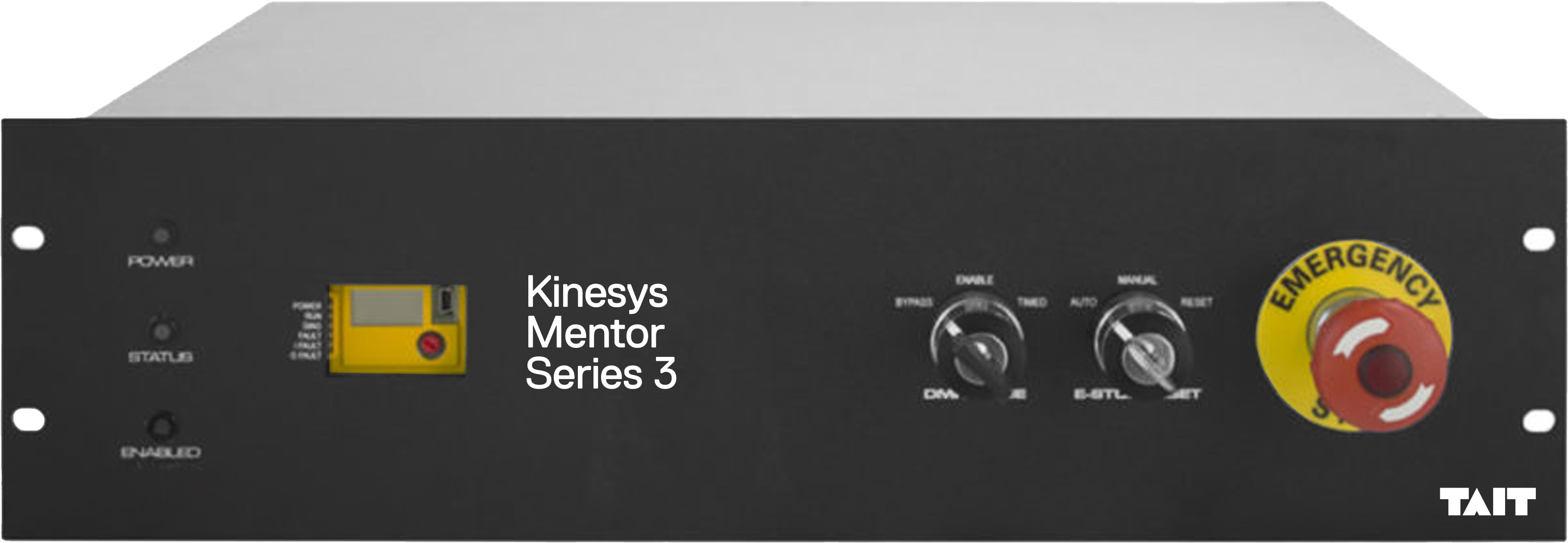

Mentor comprises a range of safety controllers and distribution equipment to provide safety input, connection, and monitoring to Kinesys and third-party automation systems. The Mentor M307 and Mentor M308 are designed for use with Velocity 2 and EVO V2 systems. They connect via a Universal Device Interface (UDI) connector, which provides volt-free contact inputs and outputs for the connection of a wide range of systems. The main difference between the M307 and M308 models is that the M308 model includes two additional drive connectors and a console connector.
When used with Kinesys safety input devices and suitable output devices, the emergency stop hold-to-run system complies with requirements up to PLe (EN 13849) or SIL3 (EN 62061).
Specifications
| Electrical | ||
| Mains In | 85- 264V, 50- 60 Hz, 70W via Neutrik PowerCON TRUE1 with link output | |
| Power connection | Neutrik PowerCON True 1 | |
| Control connections | E-Stop + DMH 10-Pin MIL connector 2 x Ethernet ports Neutrik EtherCON for EVO 19-Pin MIL connector for Velocity 2 |
|
| Construction | ||
| Enclosure | Steel enclosure, zinc plated finish Steel front panel, blue stove enamel finish |
|
| Dimensions, excluding cables and handles (W x H x D) | 483 mm x 177 mm x 504 mm (19 in x 7 in x 19.8 in) | |
| Rack mount | Suitable for 19” rack, 4U size | |
| Total weight | 21.4 kg (47.2 lbs) | |
| Characteristics | ||
| Cooling | IP30 | |
| Temperature | Operating: 5 to 40ºC (41 to 104ºF) Storage: -20 to 55 ºC (-4 to 131 ºF) |
|
| Ingress Protection | Forced air cooled (2 x internal DC fan) | |
| Compliance | EN62061, EN ISO 13849 | |

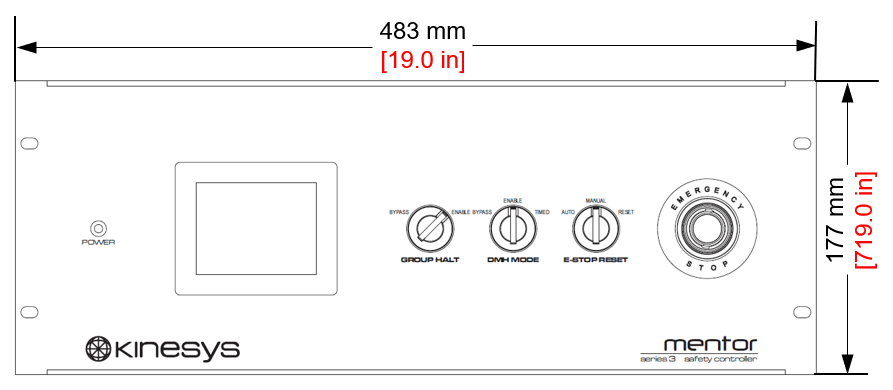

Dimensions
| Front View |
Still Have Questions?
If you have any questions, please contact us. We look forward to hearing from you soon!
Disclaimer: These specifications are general guidelines only and may not be appropriate for your particular project. All product specifications and Data are subject to change without notice. Data, performance features, and images may vary from the final project quote. Issue date: 2021.05.24. Copyright 2021 TAIT Towers Manufacturing, LLC. All rights reserved.
