The Pin Track Trolley and Truss system is comprised of several TAIT elements attached to a heavy duty 30in x 30in Truss. HD Fastrack is installed on truss to bear the load and provide cable management options. The Pin Track attaches to the Fastrack and integrates with the Pin Trolley to complete the rack and pinion drive system for lateral movement. Build to desired length in 10 foot sections. For vertical lifting a TAIT T Winch can be bolted to the bottom of the trolley. You may also add a Gimbal Car to the Fastrack which redirects the T Winch lifting lines down to load, often for flying a performer on two points. Additional capability and capacity is possible by integrating with a tracking rotator and NAV Hoists. Loading capacity is dependent on size of track and configuration.
Seamlessly integrates with the TAIT Navigator Automation System, allowing for precise speed and motion control. Can package in cradle dollies so the trolley and accessories travel installed in the truss for faster load in and out.
Specifications
Electrical | |
Voltage | 208V |
Connection | |
Power | L21-30 |
Communications | TComm |
Control System | TAIT Navigator |
Mechanical | |
Maximum Line Load |
with single T-Winch configuration 217.72 kg (480 lbs) |
Speeds | 1.5 m/s (4.92 ft/s) to 2.07 m/s (6.8 ft/s) |
Construction | |
Dimensions (L x W x H) |
Truss section: 3048 mm x 0.76 m 0.76 m (120 in x 30 in x 30 in) |
Weight |
Truss (each segment): 95.7 kg (211 lbs) |
Accessories | |
Fastrack System | Various accessories for different scenarios |
Cable management | Fastrack cable management cars |
Gimble Car | For added load |
Tracking Rotator | Add rotation to prop movements |
Configurations and Views

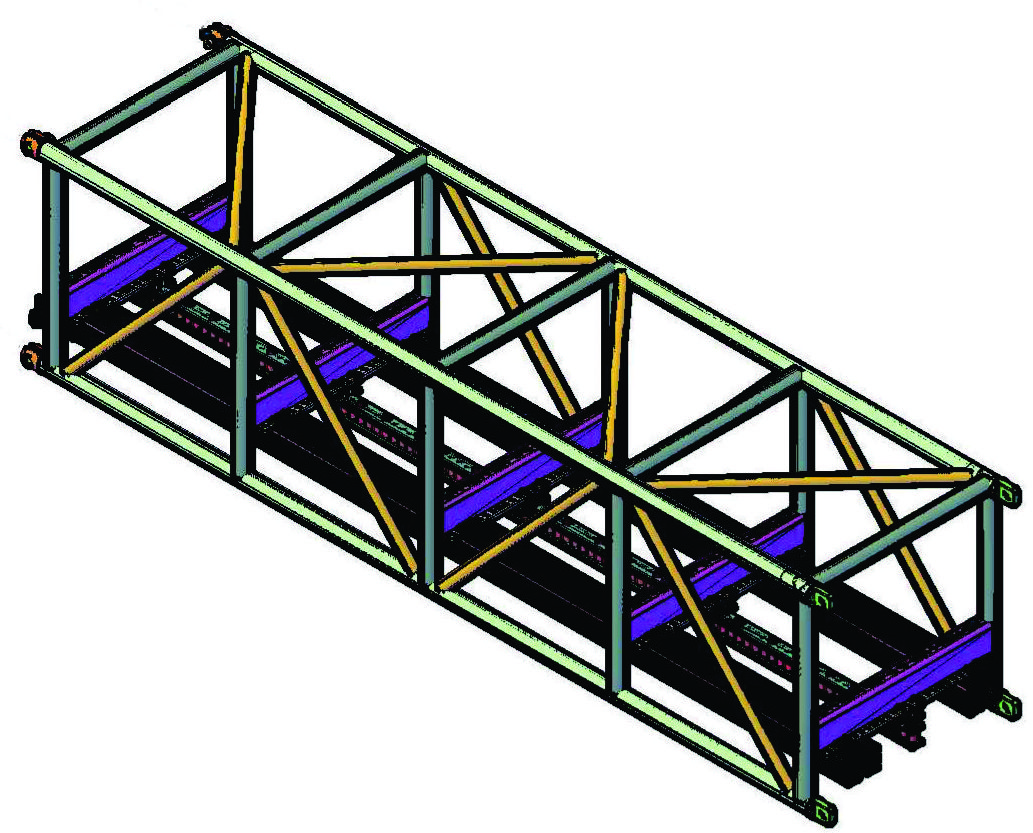

Pin Trolley ISO View | Pin Track and Truss ISO View |

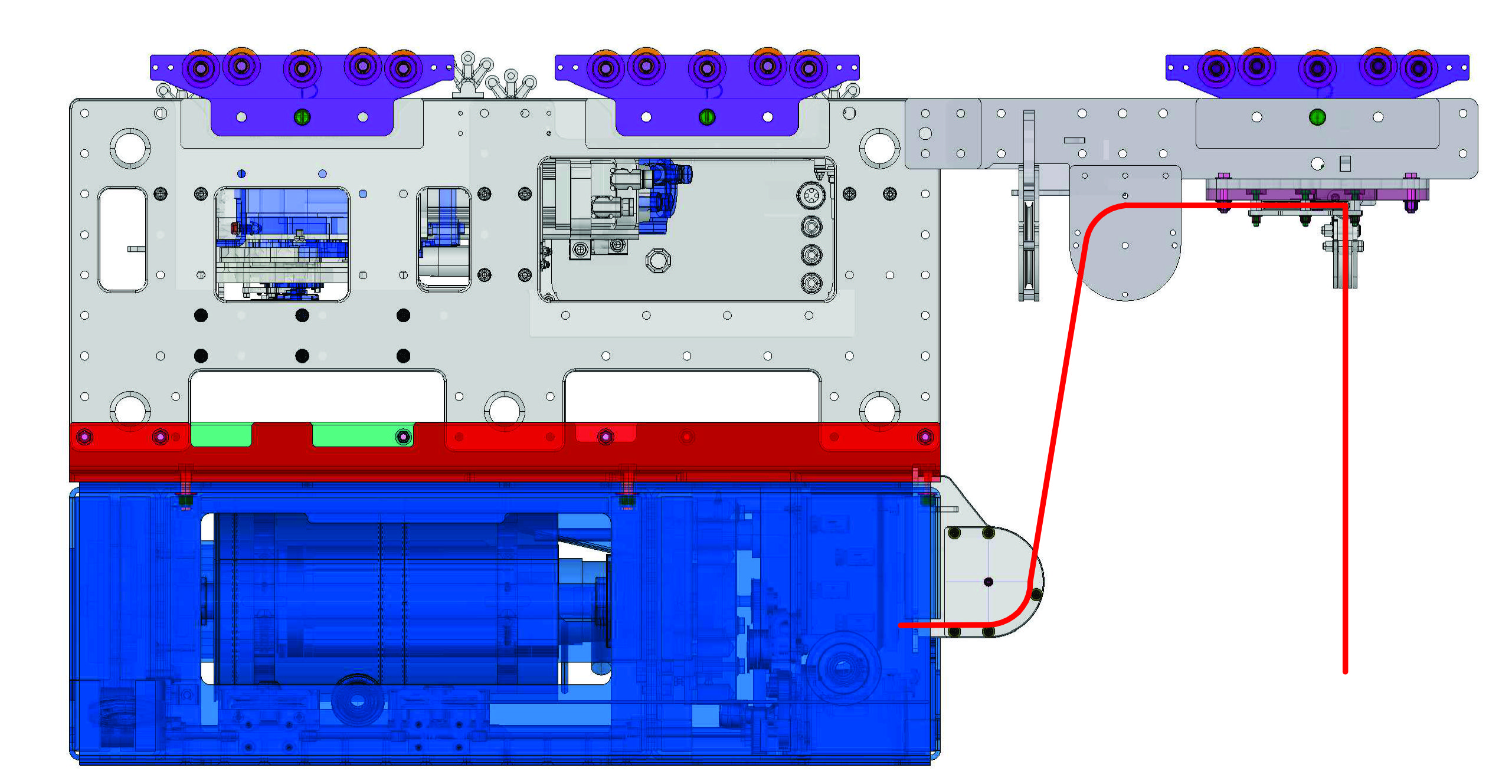

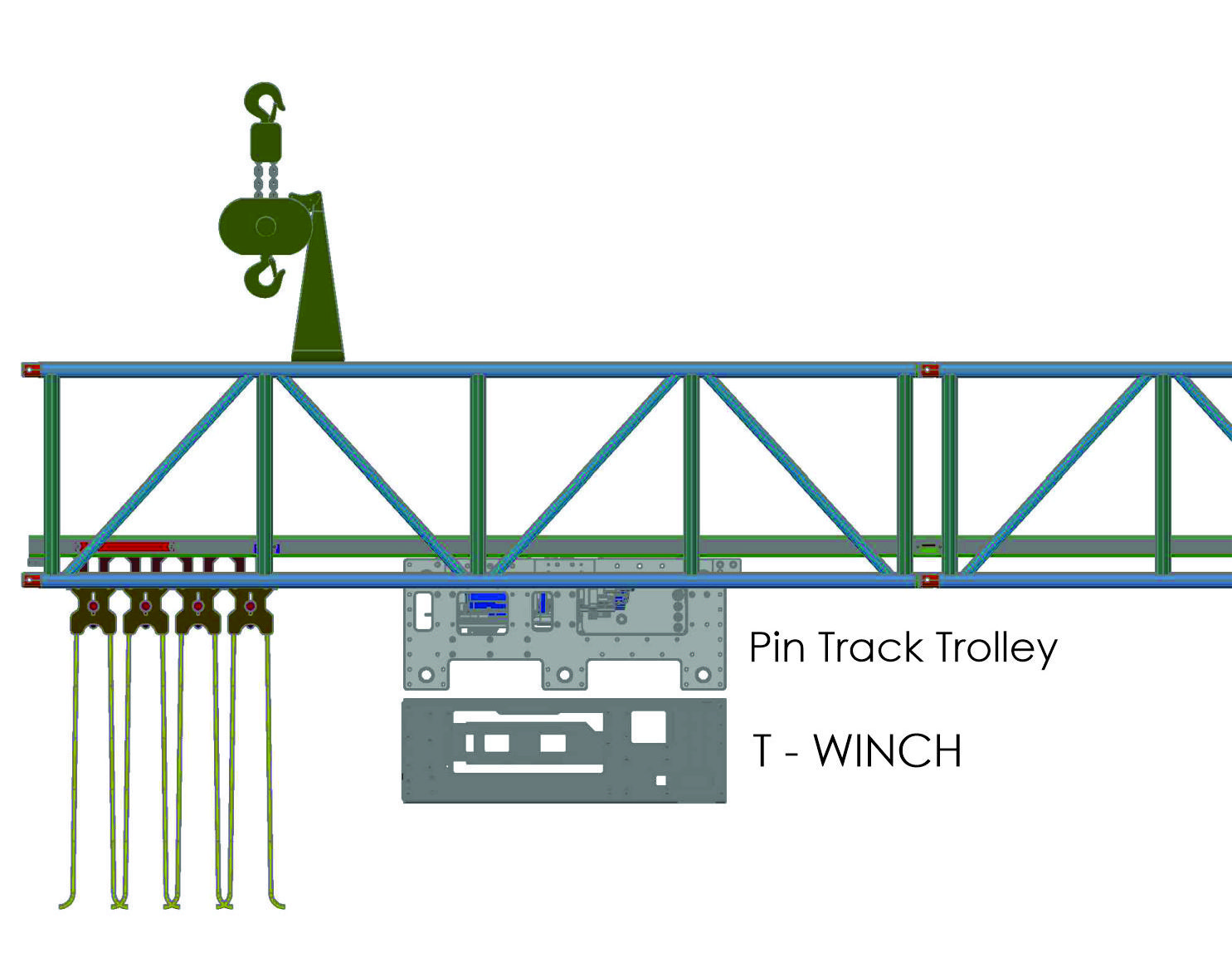

Pin Trolley and T-Winch Configuration | Pin Trolley and T-Winch + Gimble Car Configuration |

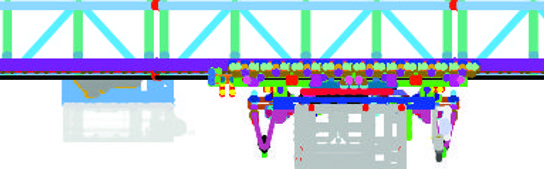

Pin Trolley and Tracking Rotator Configuration | |
Still Have Questions?
If you have any questions at all--or if you're ready to rent--please contact us. We look forward to hearing from you soon!
Disclaimer: These specifications are general guidelines only and may not be appropriate for your particular project. All product specifications and Data are subject to change without notice. Data, performance features, and images may vary from the final project quote. Revision date: 2025.01.06 Copyright 2023-2025 TAIT Towers Manufacturing, LLC. All rights reserved.
I-CODE: Pin Trolley 28500115, Pin Track 78425080, Fastrack 78450525, Heavy Duty Truss 75010100
