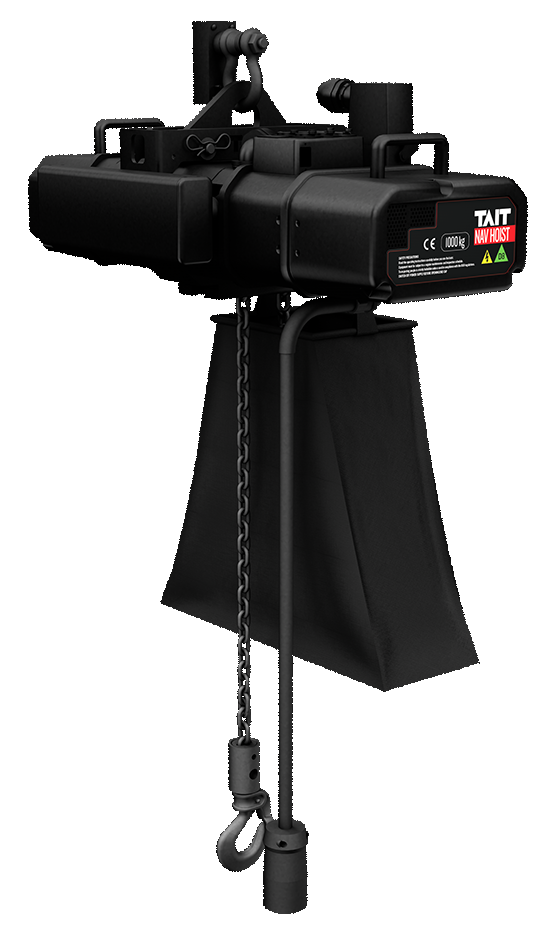

The Nav Hoist is a fully automated and integrated electric chain hoist that meets the highest level of hoist safety (BGV-C1). Nav Hoists can be configured for use in different theatrical and staging operations, as a single-fall or double-fall setup and inverted for motor-down operation. Nav Hoists feature variable speed operation, dual independent brakes, and a five-pocket lift wheel for fast, quiet, and smooth lifting. The top rigging connection features a fixed plate and the chain is fitted with a locking hook. As part of the TAIT Navigator Automation Platform, Nav Hoists can perform intricate and precise movements while maintaining complete control over the load.
Specifications
| Software Compatibility | |
| Control System | Navigator |
| Electrical | |
| Motor Phase | 3 Phase + PE |
| Duty Cycle | 25% |
| Rated Voltage | 208V, 50/60 Hz |
| Power | 2.6 kW |
| Current | Max: 9.7A |
| Brakes | Dual |
| Encoder | Incremental standard; SSI encoder available |
| Connections | |
| Power | 5-pole, L21-30 cable (3 phase + 1 ground + 1 neutral) |
| Pendant Control | XLR4 + XLR7 |
| Network | Ethernet |
| Load Cell Ports | Two (2) independent ports 5-pin XLR cables (4-20 mA with 24 VDC supply) |
| Mechanical | |
| BGV-D8 | Single Fall Capacity: 1000 kg (2204.62 lbs) Single Fall Speed: 11.70 m/min (38.39 ft/min) Double Fall Capacity: 2000 kg (4409.24 lbs) Double Fall Speed: 5.90 m/min (19.36 ft/min) |
| BGV-C1 | Single Fall Capacity: 500 kg (1102.31 lbs) Single Fall Speed: 11.70 m/min (38.39 ft/min) Double Fall Capacity: 1000 kg (2204.62 lbs) Double Fall Speed: 5.90 m/min (19.36 ft/min) |
| Length of Lift, standard | 22.86 m (75 ft) |
| Max. Length of Lift, achievable | Standard Limit Box (280 nominal rotations): Single-fall: 56 m (183.73 ft). Double-fall: 28.3 m (92.85 ft) High-rotation Limit Box (470 nominal rotations): Single-fall: 87.78 m (288 ft). Double-fall: 43.89 m (144 ft) |
| Environmental | |
| Operating Temp | 40 C (104 F) |
| Outdoor Use | Rain covers available |
| Construction | |
| Dimensions (L x W x H) | With Suspension Hook: 715.96 mm x 378.57 mm x 355.08 mm (28.19 in x 14.90 in x 13.98 in) With Single-hole Suspension Eye: 715.96 mm x 378.57 mm x 309.36 mm (28.19 in x 14.90 in x 12.18 in) |
| Weight | 51.38 kg (113.27 lbs) excluding chain |
| Certifications | |
| Safety | Conforms to UL 508. Complies with CE standards. Certified to CSA 22.2 No. 14 |
| Accessories | |
| Chain | Type: RUD EN 818-7 DAT. Size: 7 x 22 mm (0.28 in x 0.87 in) Weight: 0.74 kg/m (1.63 lbs/ft) |
| Extras | Truss grapples, chain sliders, control pendant |
Dimensions
Nav Hoist – Suspension Hook
| ISO View | Top View | Side View |
Nav Hoist – Single-hole Suspension Eye
| ISO View | Top View | Side View |
| Shipping ISO View | Shipping Front View | Shipping Side View |
Packaging and Shipping
| Number of units per case | One (1) |
| Stacking | Three (3) cases can be stacked on top of another |
| Dimensions (L x W x H) | 812.80 mm x 571.50 mm x 714.38 mm (32 in x 22.50 in x 28.13 in) |
| Packaging Weight | |
| Case only | 56.25 kg (124.00 lbs) |
| Case with unit and accessories | 131.77 kg - 151.95 kg (290.50 lbs - 335.00 lbs), depends on config |
