Key Features
|
Description
The Apex Hoist 1250 electric chain hoist meets Use Cases 1 thru 4 of EN17206 for hoist safety. Low-noise brakes across the range along with the ability to ‘hover’ allow the use of the compact Apex system in environments where chain hoists previously may not have been appropriate. Double Reeve option available to hoist loads up to 2500 kg (5511.56 lbs). The Apex Hoist logs all the key usage data including run time, maximum load experienced by the hoist, maximum temperature reached and number of brake operations.
Interfaces with the Apex Drive v2 NAV for seamless system integration. As part of the TAIT Navigator Automation Platform, Apex Hoist 1250 can perform intricate and precise movements while maintaining complete control over the load.
Specifications
Software Compatibility | |
Control System | TAIT Navigator and iQ |
Electrical | |
Motor Phase | 3 Phase + PE |
Voltage | 208/400/480V nominal |
Duty Cycle | Intelligent Duty Cycle management |
Brakes | Dual, low-noise and monitored |
Connections | |
Power, Network | Multi-function Harting connector |
Drive Controller | Apex Drive v2 NAV |
Mechanical | |
Load Capacity 10:1 Factor of Safety (FoS) |
Single reeve: 1250 kg (2755.78 lbs) |
Speed | Single reeve: 0-0.2 m/s (0.66 ft/s) Double reeve: 0-0.1 m/s (0.33 ft/s) |
Chain | Size: 11 mm x 31 mm (0.43 in x 1.22 in) Weight: 2.75 kg/m (1.85 lbs/ft) |
Max. Length of Lift, achievable | Single reeve: 75 m (246.06 ft) Double reeve: 37.5 m (123.03 ft) |
Features | Integral SIL3 rated loadcell, temperature monitoring |
Construction | |
Dimensions (L x W x H) | 639 mm x 391 mm x 425 mm (25.26 in x 12.39 in x 16.73 in) |
Weight | 92.5 kg (203.9 lbs) with no chain 179 kg (394.63 lbs) with 24 m chain 255 kg (562.18 lbs) with 50 m chain, double reeved |
Certifications | CE, EN17206 Use Case 1-4 |
Dimensions

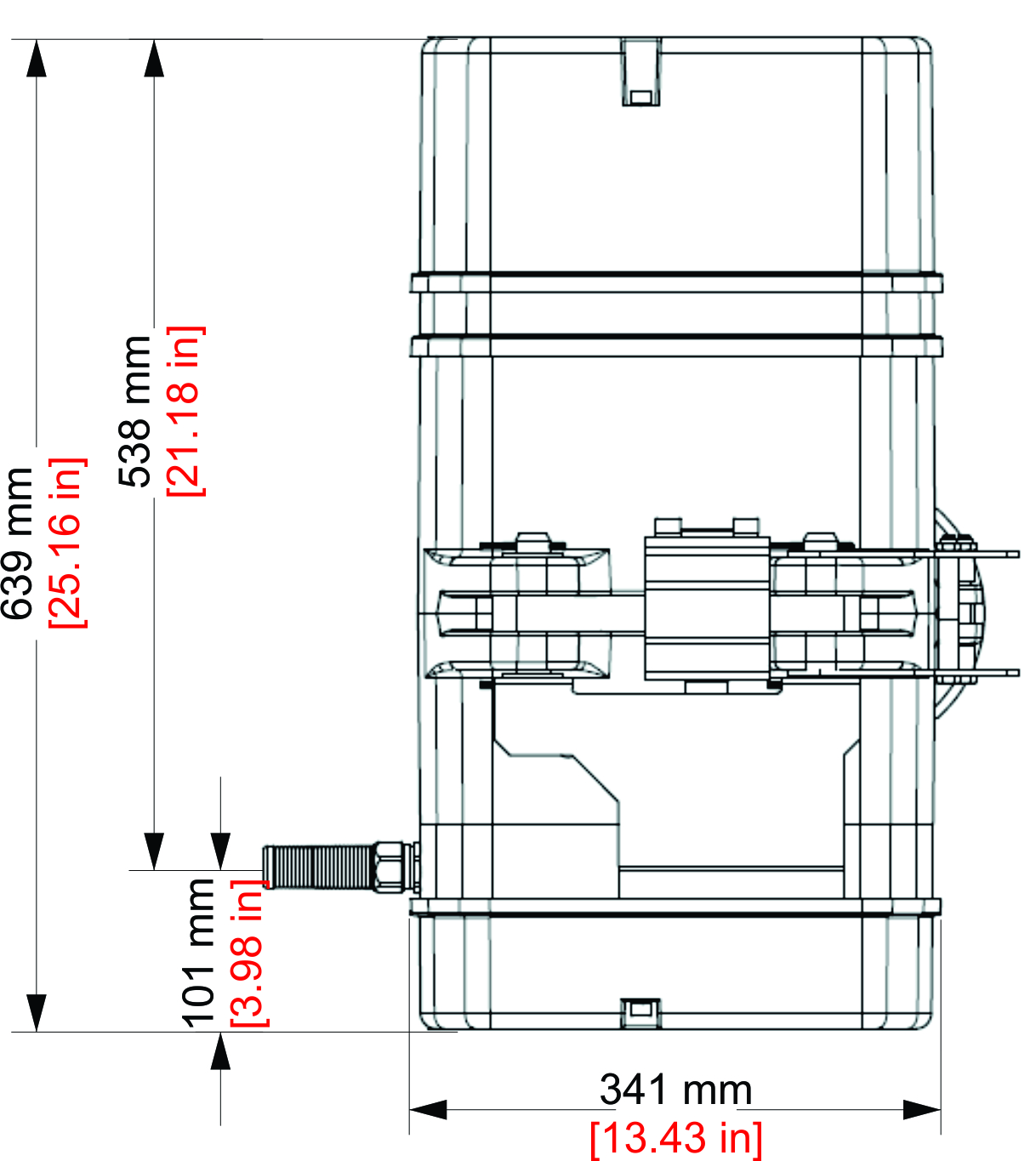

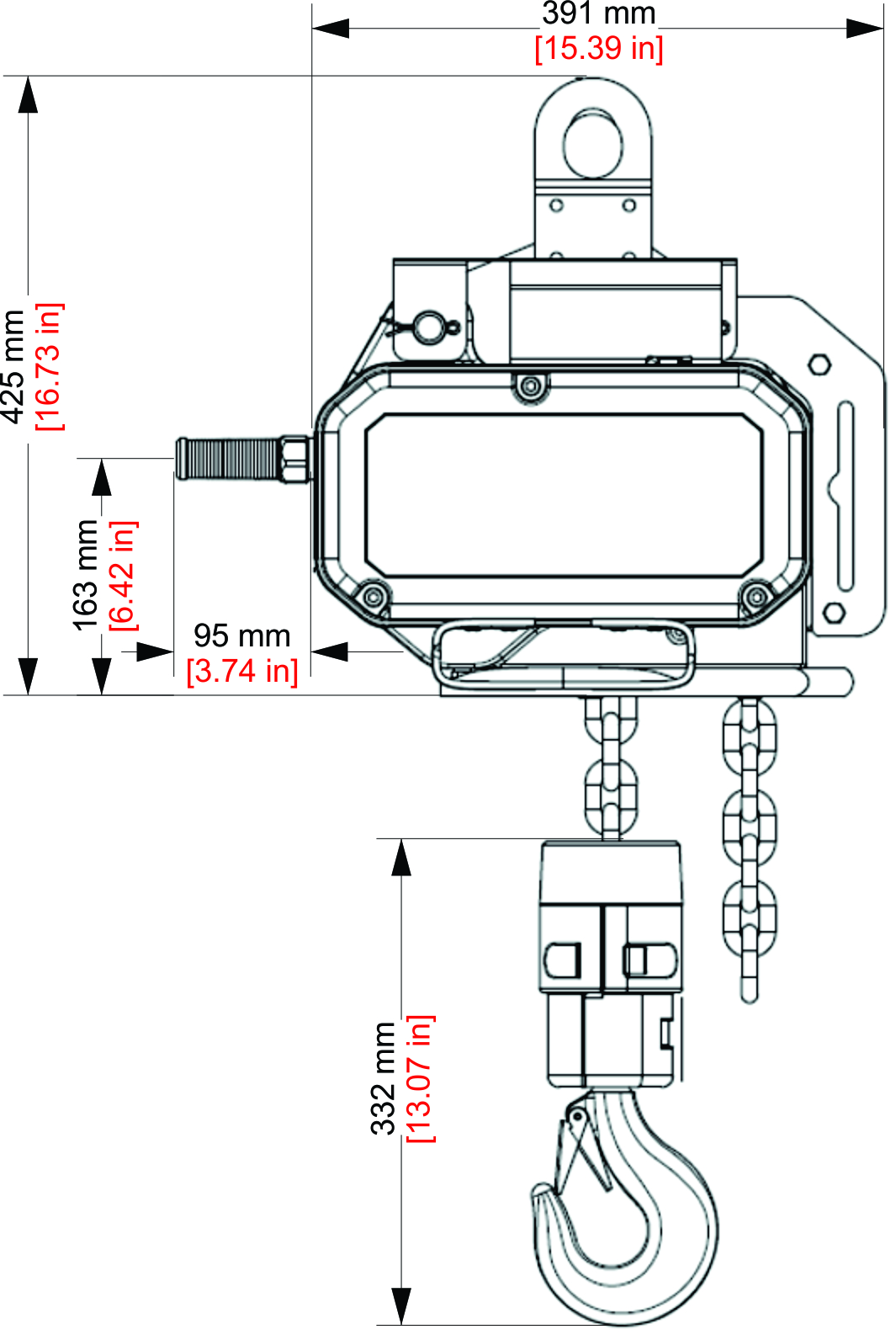

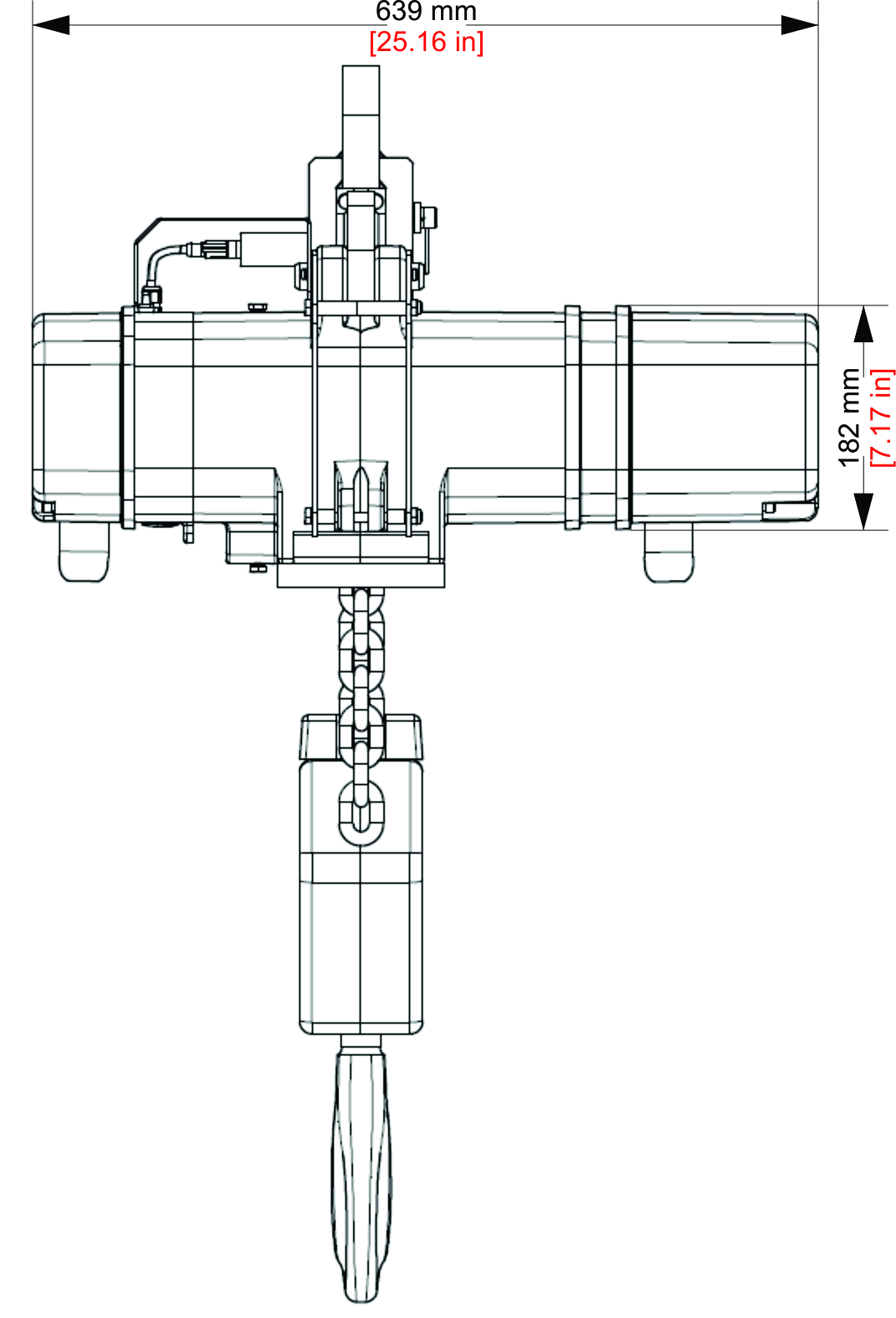

Front View | Top View | Side View |
Double Reeve: Front View | Top View | Side View |
Still Have Questions?
If you have any questions at all--or if you're ready to rent--please contact us. We look forward to hearing from you soon!
Disclaimer: These specifications are general guidelines only and may not be appropriate for your particular project. All product specifications and Data are subject to change without notice. Data, performance features, and images may vary from the final project quote. Issue date: 2021.10.06. Copyright 2021 TAIT Towers Manufacturing, LLC. All rights reserved.
I-CODE: 198300207
